02011602102

Har-Bus 64 HM 连接器Harting Har-Bus 64 硬公制连接器适用于很多 PCI 应用。硬公制连接器设计用于控制和工业计算系统的高速连接器应用。 所有 Har-bus HM 连接器均设计用于压入技术。2mm 节距 70°C 时电流额定值为 1A（80% 降额） 最低测试电压 750 V 交流 触点电阻 20mΩ 温度范围 -55 至 +125 °C ### Harting 底板连接器

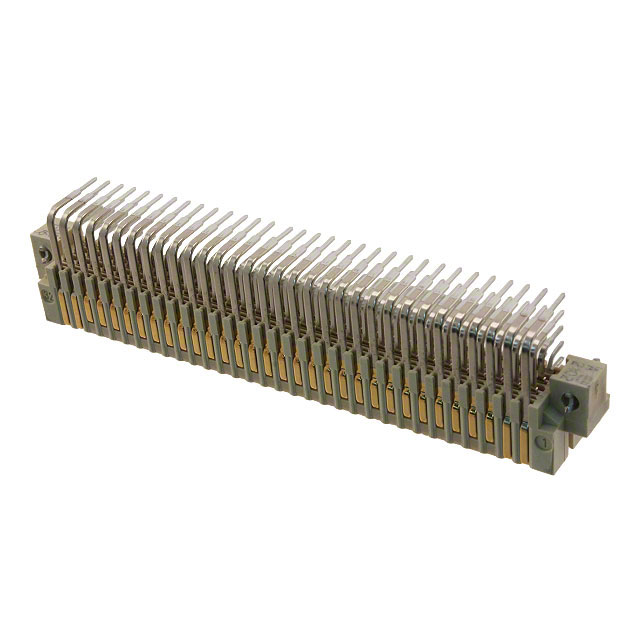

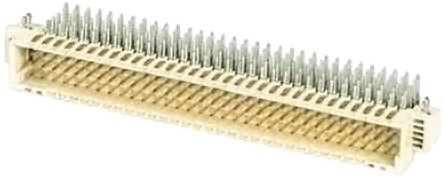

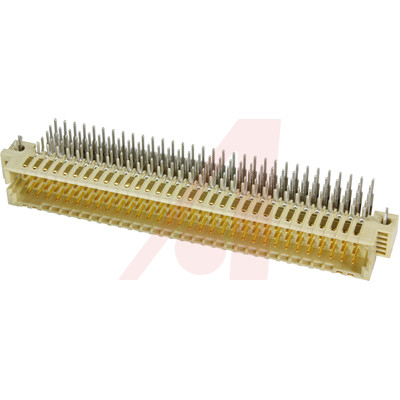

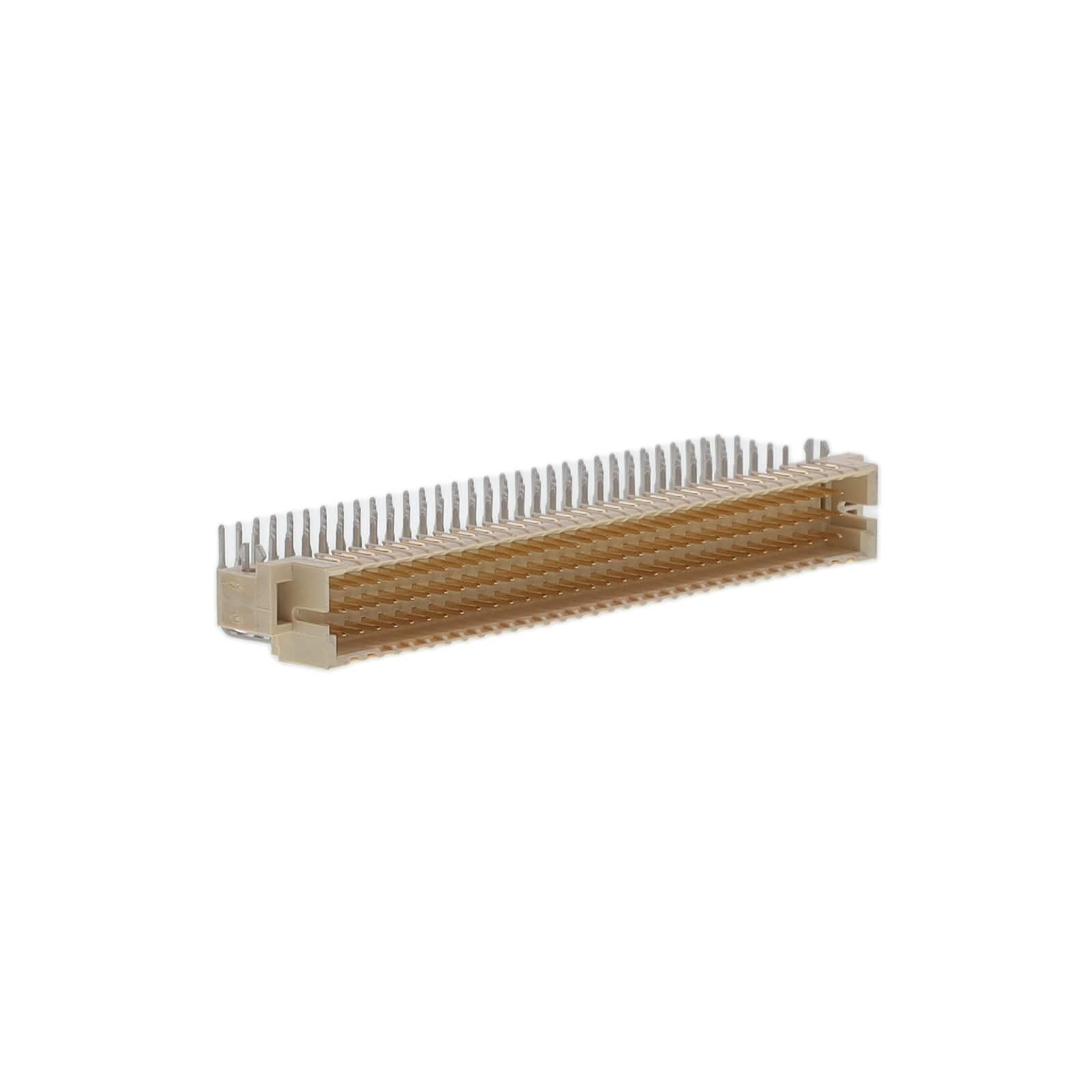

Har-Bus 64 HM

Harting Har-Bus 64 硬公制连接器适用于很多 PCI 应用。硬公制连接器设计用于控制和工业计算系统的高速连接器应用。 所有 Har-bus HM 连接器均设计用于压入技术。

2mm 节距

70°C 时电流额定值为 1A（80% 降额）

最低测试电压 750 V 交流

触点电阻 20mΩ

温度范围 -55 至 +125 °C

得捷:
CONN DIN HDR 160POS PCB RA

欧时:
### Har-Bus 64 HM 连接器Harting Har-Bus 64 硬公制连接器适用于很多 PCI 应用。硬公制连接器设计用于控制和工业计算系统的高速连接器应用。 所有 Har-bus HM 连接器均设计用于压入技术。2mm 节距 70°C 时电流额定值为 1A（80% 降额） 最低测试电压 750 V 交流 触点电阻 20mΩ 温度范围 -55 至 +125 °C ### Harting 底板连接器

贸泽:
DIN 41612 连接器 160P MALE R/A SOLDER

e络盟:
连接器, DIN41612, 公, 160路, 直角型PCB

艾睿:
This din 41612 02011602102 backplane connector from Harting is ideal for linking multiple connectors together. This M connector&s;s 160 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a male type gender. Its pitch is 2.54 mm. This is a 5-row connector. It has a right angle body orientation. This device has a maximum current rating of 1 A. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 93.9 mm long, 11 mm tall and 20.28 mm deep. This backplane connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Allied Electronics:
BackPlane Connector, Printed Board; 160Poles; Printed Board; 1; Male; 3 mm

Verical:
Conn DIN 41612 M 160 POS 2.54mm Solder RA Thru-Hole Tube

Newark:
# HARTING  02011602102  DIN 41612 Connector, har-bus 64 Series, 160 Contacts, Plug, 2.54 mm, 5 Row, z + a + b + c + d
