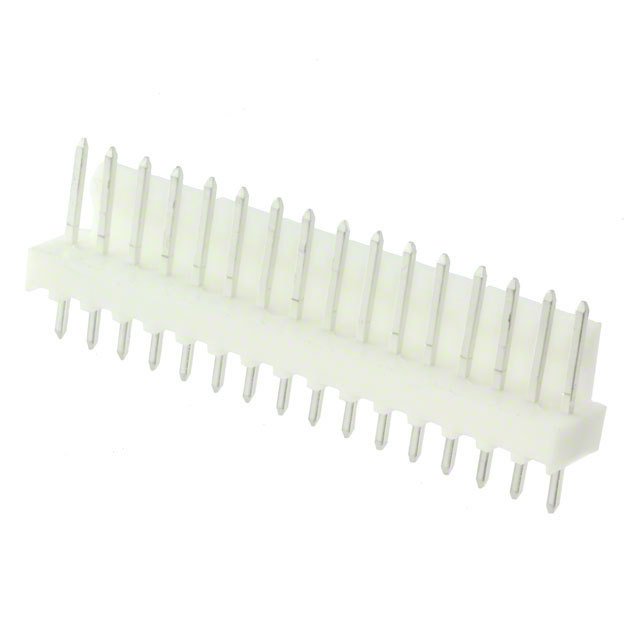

2.54毫米（ .100 ）间距KK®固体头，垂直，用摩擦锁， 16电路，锡（Sn ）镀层 2.54mm .100 Pitch KK® Solid Header, Vertical, with Friction Lock, 16 Circuits, Tin Sn Plating
Connector Header Through Hole 16 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 16POS 2.54MM
贸泽:
集管和线壳 KK 100 Hdr FrLk Vert 16 Ckt Tin
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s wire to board 0022232161 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 16 contacts that are made out of brass and plated with tin over copper. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 4 A/contact. This product is 40.64 mm long, 10.67 mm tall and 6.35 mm deep. This connector has an operating temperature of -40 to 80 °C. 0022232161 is housed in white nylon. It uses the solder termination method.
Chip1Stop:
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn Wire to Board HDR 16 POS 2.54mm Solder ST Thru-Hole KK® Bag
