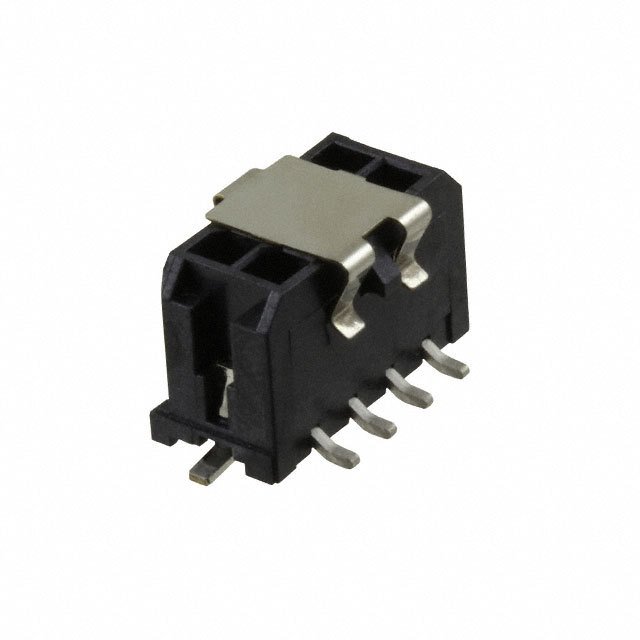

3.00毫米( 0.118 “ )间距微飞度3.0 ™接头,表面贴装,双排,垂直,用焊片, 8电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Vertical, with Solder Tab, 8 Circuits
针座 表面贴装型 8 位置 0.118"(3.00mm)
得捷:
CONN HEADER SMD 8POS 3MM
艾睿:
Mounting this wire to board 0430450819 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 8 contacts that are made out of brass alloy and plated with gold over nickel. Its pitch is 3 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 600 V. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It uses the solder termination method. 0430450819 is housed in black liquid crystal polymer. This product is 9.91 mm tall. This connector has an operating temperature of -40 to 105 °C.
安富利:
Conn Wire to Board HDR 8 POS 3mm Solder ST SMD T/R
Chip1Stop:
Conn Wire to Board HDR 8 POS 3mm Solder ST SMD T/R
Verical:
Conn Wire to Board HDR 8 POS 3mm Solder ST Top Entry SMD Micro-Fit 3.0™ T/R
触点数 8
额定电流 8 A
绝缘电阻 1000 MΩ
排数 2
针脚数 8
拔插次数 30
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 600 V
额定电压 600 V
接触电阻Max 10 mΩ
安装方式 Surface Mount
封装 -
高度 9.91 mm
封装 -
外壳颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 通用,医疗,军事,电信
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
