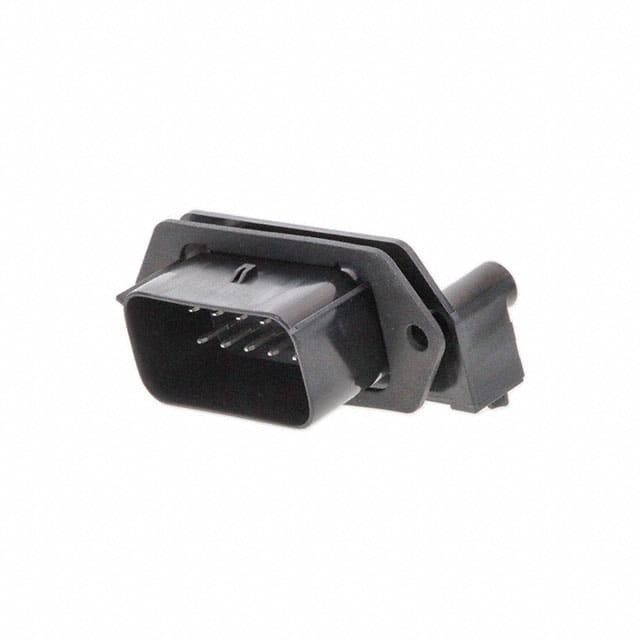

5.84毫米（ 0.230 “ ）间距MX150L ™直角PCB插头，双排，不PCBFlange ， 12电路 5.84mm .230" Pitch MX150L™ Right Angle PCB Header, Dual Row, without PCBFlange, 12 Circuits
Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.230" 5.84mm
得捷:
CONN HEADER R/A 12POS 5.84MM
艾睿:
Use this wire to board 0194270012 connector from Molex when board-to-board interconnects is required. This HDR connector&s;s 12 contacts that are made out of copper alloy and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 600 V. It has a right angle body orientation. Its pitch is 5.84 mm. This is a 2-row connector. This device has a maximum current rating of 18 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -40 to 125 °C. This product is 69.85 mm long, 31.67 mm tall and 39.65 mm deep. It uses the solder termination method. 0194270012 is housed in black polyester.
Verical:
Conn Wire to Board HDR 12 POS 5.84mm Solder RA Thru-Hole MX150L™ Tray
