0791077003

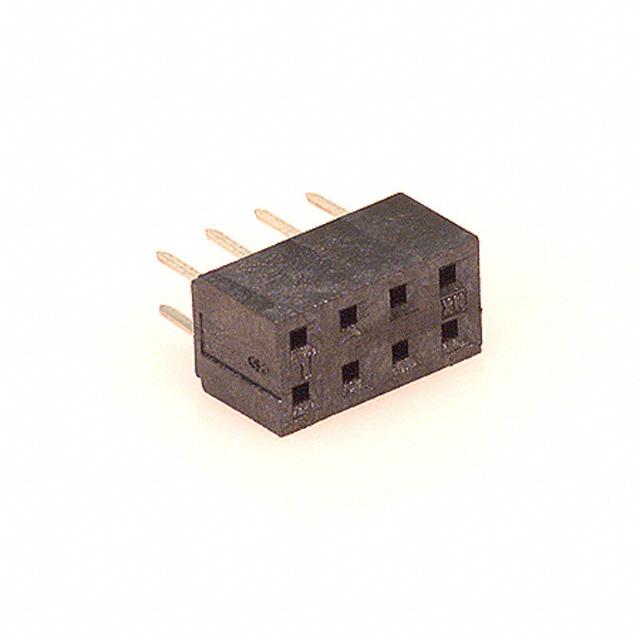

2.00毫米（ .079 “ ）间距的Milli-电网™插座，垂直，通孔，双排， 3.00毫米（ 0.118 ），尾长， 0.38μm （ 15μ ”），金（Au ）选择性电镀，电路8 2.00mm .079" Pitch Milli-Grid™ Receptacle, Vertical, Through Hole, Dual Row, 3.00mm .118 Tail Length, 0.38μm 15μ" Gold Au Selective Plating, 8 Circuits

8 位置 插座 0.079"（2.00mm） 通孔 镀金

得捷:
CONN RCPT 8POS 0.079 GOLD PCB

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket strip 0791077003 header connector from Molex. This RCP connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 125 V. This is a 2-row connector. Its pitch is 2 mm. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 0791077003 is housed in black glass filled high temperature thermoplastic. This connector has an operating temperature of -55 to 105 °C. This product is 8.19 mm long, 4.44 mm tall and 4.19 mm deep.

安富利:
Conn Socket Strip RCP 8 POS 2mm Solder ST Thru-Hole Tube

Verical:
Conn Socket Strip RCP 8 POS 2mm Solder ST Top Entry Thru-Hole Milli-Grid™ Tube
