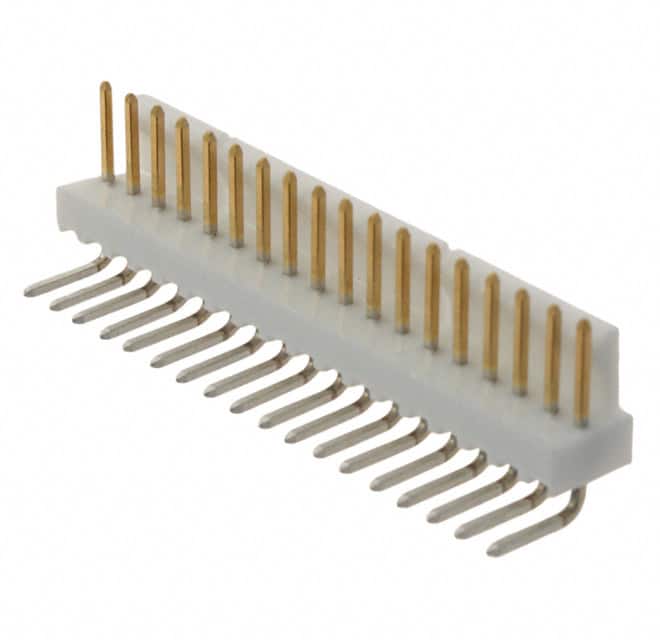

2.54毫米（ .100 ）间距KK®固体头，直角，用摩擦锁， 18电路， 0.51μm （ 20μ ），金（Au ）镀层 2.54mm .100 Pitch KK® Solid Header, Right Angle, with Friction Lock, 18 Circuits, 0.51μm 20μ Gold Au Plating
Connector Header Through Hole, Right Angle 18 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 18POS 2.54MM
艾睿:
Use this wire to board 0022122184 header connector from Molex where IDC ribbon cables are used. This HDR connector&s;s 18 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. This product is 45.72 mm long, 6.35 mm tall and 12.83 mm deep. It uses the solder termination method. 0022122184 is housed in white nylon. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Wire to Board HDR 18 POS 2.54mm Solder RA Thru-Hole Bag
Verical:
Conn Wire to Board HDR 18 POS 2.54mm Solder RA Thru-Hole KK® Bag
