0015913100

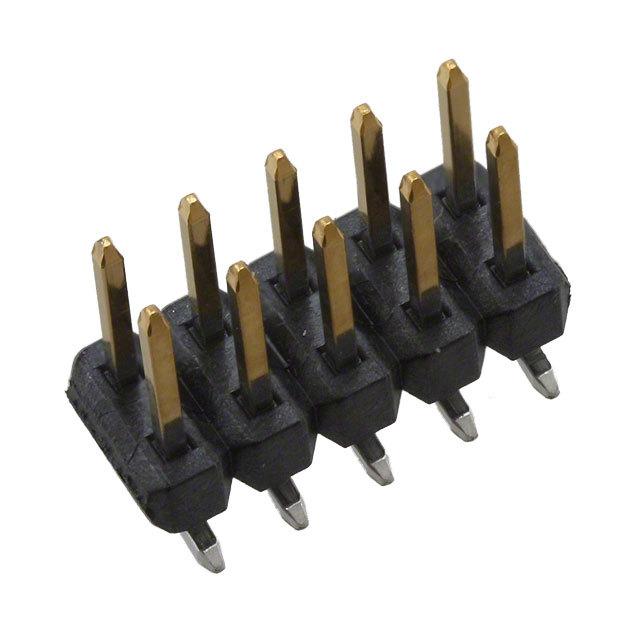

2.54毫米（ .100 ）间距C- Grid®头，表面贴装，双排，垂直， 10电路， 0.76μm （ 30μ ），金（Au ）选择性电镀，无PCB定位器衣夹 2.54mm .100 Pitch C-Grid® Header, Surface Mount, Dual Row, Vertical, 10 Circuits, 0.76μm 30μ Gold Au Selective Plating, without PCB Locator Pegs

Connector Header Surface Mount 10 position 0.100" 2.54mm

得捷:
CONN HEADER SMD 10POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
This unshrouded 0015913100 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 250 V. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -40 to 105 °C. This product is 12.7 mm long, 9.66 mm tall and 6.99 mm deep. 0015913100 is housed in black liquid crystal polymer. It uses the solder termination method.

Verical:
Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD C-Grid® Tube
