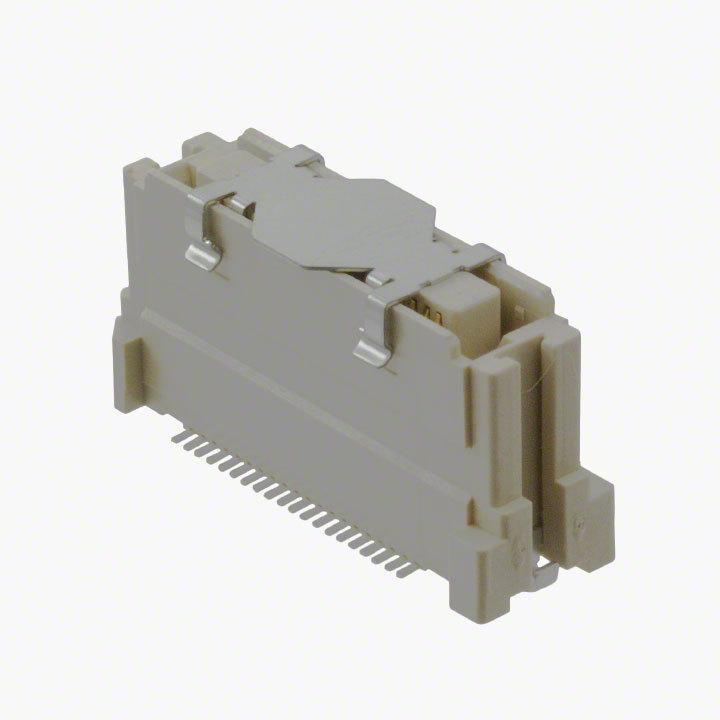

0.635毫米（ 0.025 “ ）间距SlimStack ™插座，表面贴装，双排， VerticalStacking ， 11.00 16.00毫米（ 0.433到0.630 ” ）堆叠高度，压纹带包装withCover ， 40电路，无铅 0.635mm .025" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, VerticalStacking, 11.00 to 16.00mm .433 to .630" Stacking Heights, Embossed Tape withCover Packaging, 40 Circuits, Lead-free
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 40POS SMD GOLD
立创商城:
0529010474
艾睿:
Molex brings you their board to board 0529010474 header connector, an important safety tool for protecting your electronic components from accidental damage. This RCP connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 100 VAC. This is a 2-row connector. Its pitch is 0.635 mm. It has a receptacle type gender. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. 0529010474 is housed in white liquid crystal polymer. This product is 20.57 mm long, 10 mm tall and 6.4 mm deep. This connector has an operating temperature of -40 to 105 °C.
Chip1Stop:
Conn Board to Board RCP 40 POS 0.635mm Solder ST SMD Embossed T/R
Verical:
Conn Board to Board RCP 40 POS 0.635mm Solder ST SMD SlimStack™ T/R
