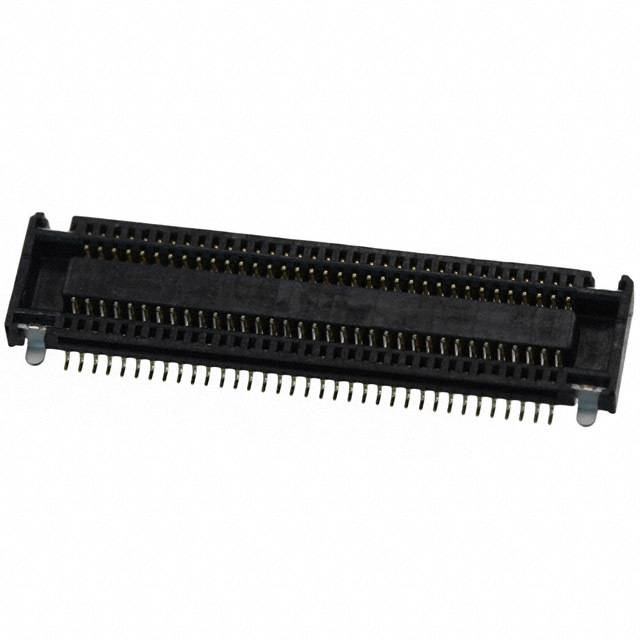

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直， 2.00and 3.00毫米（ 0.079和0.118 ” ）堆叠高度，用焊片， 70电路，无铅 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical, 2.00and 3.00mm .079 and .118" Stacking Heights, with Solder Tabs, 70 Circuits, Leadfree
70 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 70POS SMD GOLD
艾睿:
This board to board 0543630778 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector&s;s 70 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. It has a maximum voltage rating of 50 V. Its pitch is 0.5 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This connector has an operating temperature of -25 to 85 °C. 0543630778 is housed in black glass filled liquid crystal polymer. It uses the solder termination method. This product is 21.4 mm long, 1.55 mm tall and 5.84 mm deep.
安富利:
Conn Board to Board RCP 70 POS 0.5mm Solder ST SMD Embossed T/R
Chip1Stop:
Conn Board to Board RCP 70 POS 0.5mm Solder ST SMD Embossed T/R
Verical:
Conn Board to Board RCP 70 POS 0.5mm Solder ST SMD SlimStack™ T/R
