0714391864

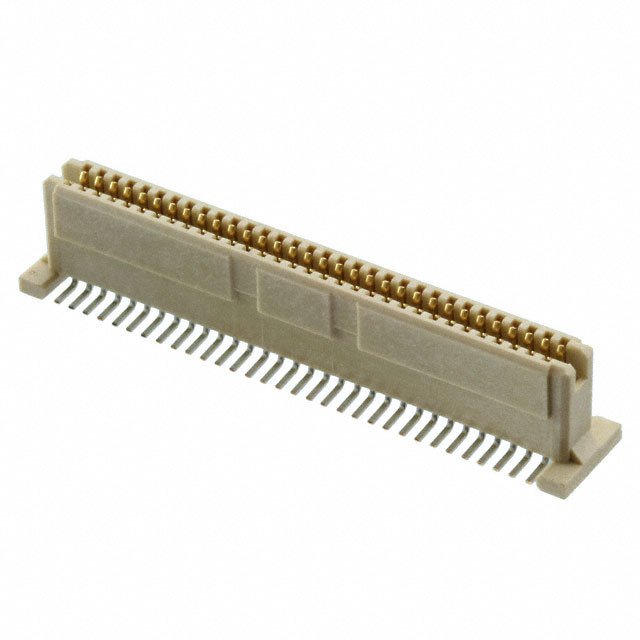

1.00毫米（ .039 “ ）间距夹层IEEE 1386插座，表面贴装，双排，垂直叠加 1.00mm .039" Pitch Mezzanine IEEE 1386 Receptacle, Surface Mount, Dual Row, Vertical Stacking

64 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold

得捷:
CONN RCPT 64POS SMD GOLD

艾睿:
Mounting this ieee 1386 0714391864 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This RCP connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. This is a 2-row connector. Its pitch is 1 mm. It has a maximum voltage rating of 100 V. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -55 to 85 °C. This product is 35.9 mm long, 6.5 mm tall and 6.1 mm deep. It uses the solder termination method. 0714391864 is housed in natural liquid crystal polymer.

安富利:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R

Chip1Stop:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD 64 Terminal 1 Port T/R

Verical:
Conn Mezzanine RCP 64 POS 1mm Solder ST Top Entry SMD Mezzanine T/R
