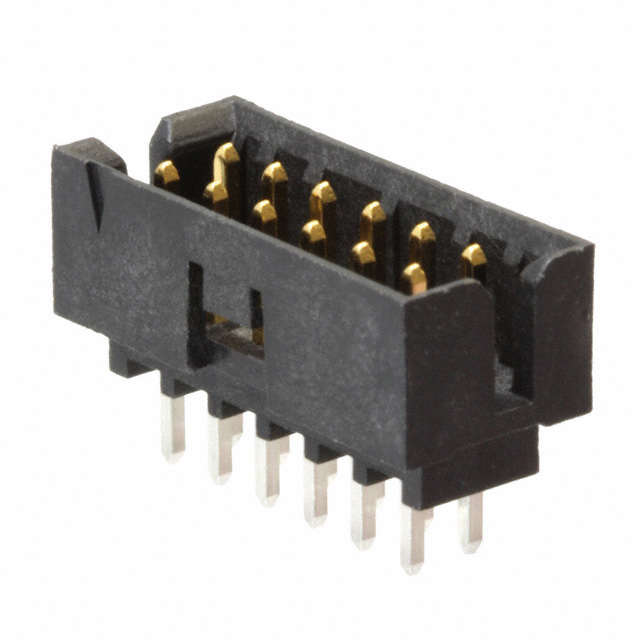

2.00毫米（ 0.079 ）间距的Milli-电网™接头，垂直，通孔，罩， 12无铅电路， 0.38μm （ 15μ ），金（Au ）镀层，具有锁定窗口 2.00mm .079 Pitch Milli-Grid™ Header, Vertical, Through Hole, Shrouded, Leadfree 12 Circuits, 0.38μm 15μ Gold Au Plating, with Locking Window
针座 通孔 12 位置 0.079"（2.00mm）
得捷:
CONN HEADER VERT 12POS 2MM
艾睿:
Mount this shrouded 0878311241 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2 mm. It has a straight body orientation. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 14.65 mm long, 6.4 mm tall and 6.3 mm deep. 0878311241 is housed in black nylon 4/6. This connector has an operating temperature of -55 to 105 °C.
安富利:
Conn Shrouded Header HDR 12 POS 2mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header 4 Sides HDR 12 POS 2mm Solder ST Top Entry Thru-Hole Milli-Grid™ Tube
