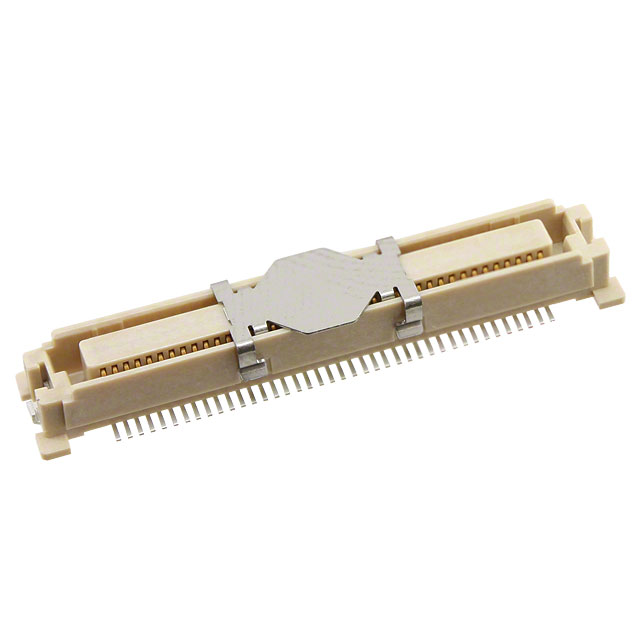

0.635毫米（ 0.025 “ ）间距SlimStack ™插座，表面贴装，双排， VerticalStacking ， 5.00 10.00毫米（ .197至.394 ” ）堆叠高度，压纹带包装withCover ， 80电路，无铅 0.635mm .025" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, VerticalStacking, 5.00 to 10.00mm .197 to .394" Stacking Heights, Embossed Tape withCover Packaging, 80 Circuits, Lead-free
80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 80POS SMD GOLD
艾睿:
This board to board 0528850874 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 100 V. This is a 2-row connector. Its pitch is 0.635 mm. It has a straight body orientation. It has a receptacle type gender. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. 0528850874 is housed in white liquid crystal polymer. This product is 33.27 mm long, 4.2 mm tall and 6.4 mm deep.
安富利:
Conn Board to Board RCP 80 POS 0.64mm Solder ST SMD Embossed T/R
Chip1Stop:
Conn Board to Board RCP 80 POS 0.64mm Solder ST SMD Embossed T/R
立创商城:
0528850874
Verical:
Conn Board to Board RCP 80 POS 0.635mm Solder ST Top Entry SMD SlimStack™ T/R
