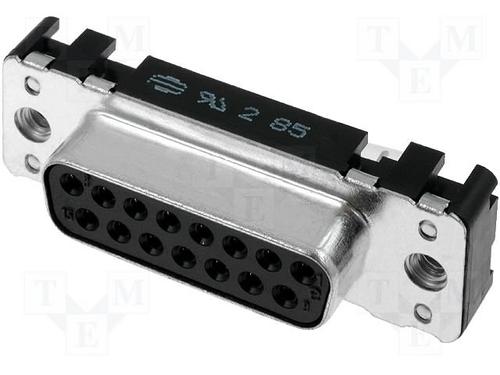

09662116502图片1

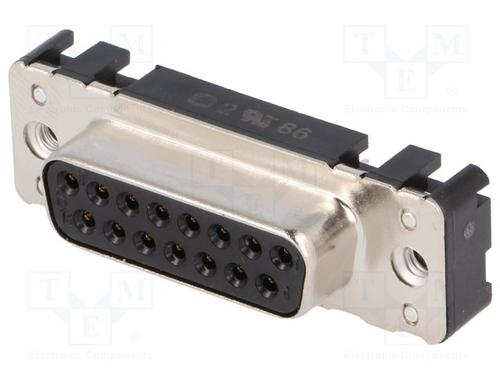

09662116502图片2
09662116502图片3

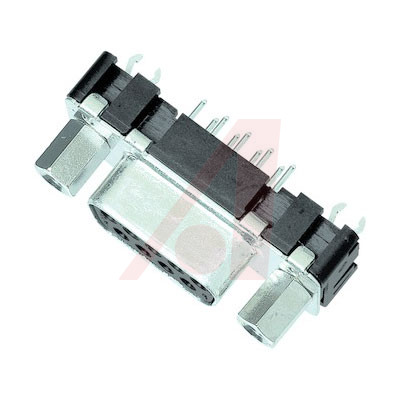

09662116502图片4
09662116502图片5

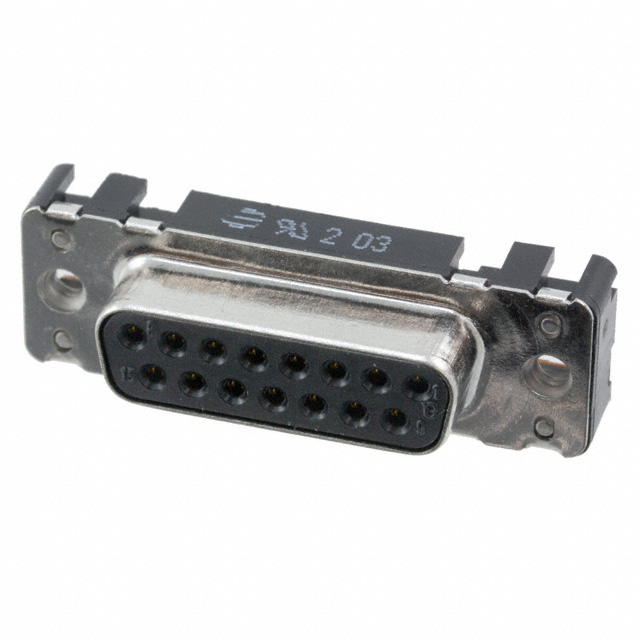

09662116502图片6
09662116502图片7
09662116502图片8
09662116502图片9
09662116502图片10

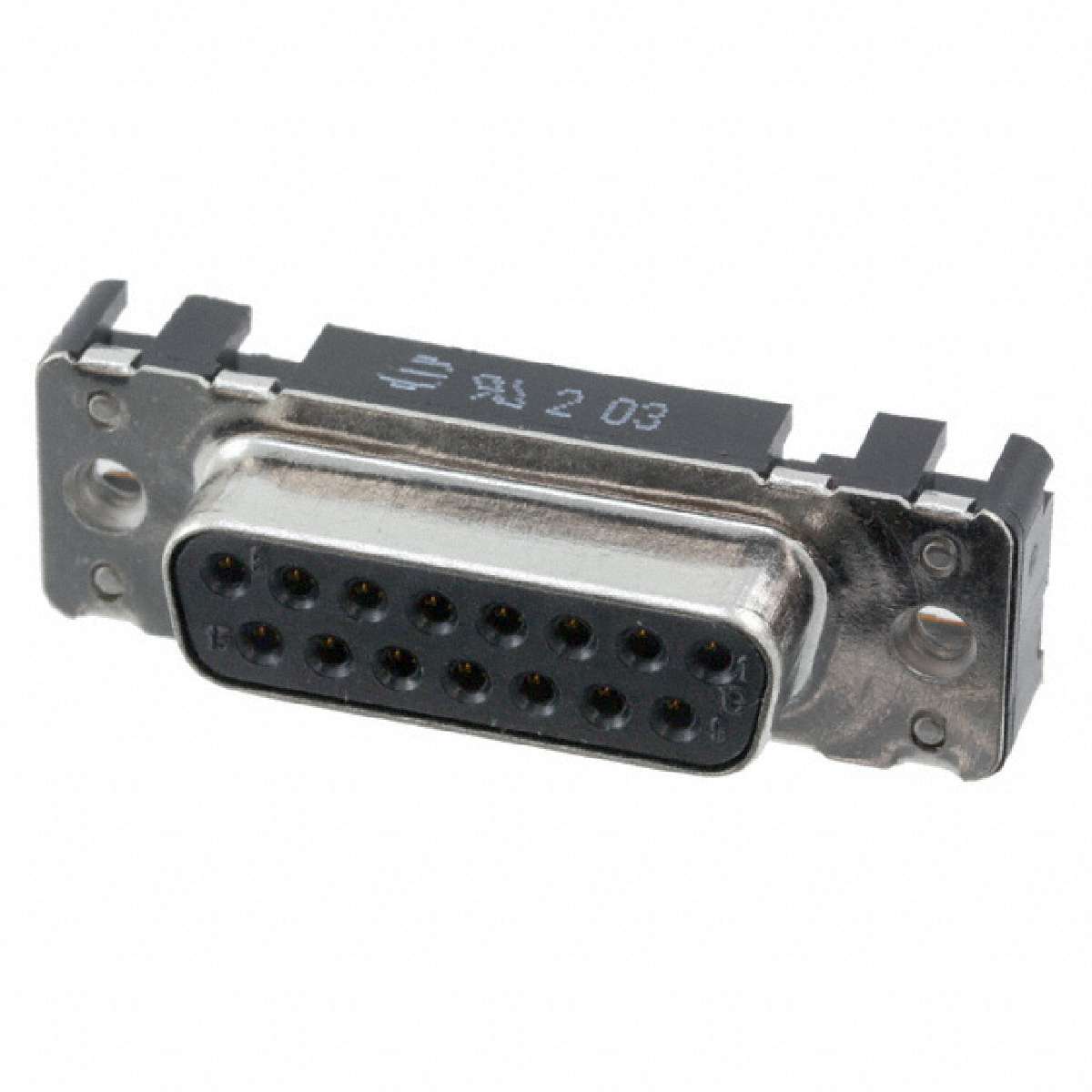

09662116502图片11
09662116502概述

D-Sub标准连接器 DSUB SV FEM SSDP STR15P PL2 NUT 4-40

**HARTING - D-Sub Subminiature D connectors :**

In line with this strategic course, the Harting D-Sub connectors provide universal solutions for specific user applications. A consistent, ongoing innovation process ensures that users of Harting’s continuously expanding D-Sub product range always benefit from the latest interface technology. Harting Connectivity & Networks generates solutions throughout the triad of Installation Technology, Device Connectivity, and Smart Network Infrastructure for all automation lifelines – namely data, signals and power.

**Features:**

* MVB, WTB, CAN, Profibus, RS232 interfaces

* Available in multiple termination techniques

* The proper contact coating to suit any requirement

* Standard, Power, coaxial, IP 67 and filter

* D-sub standard, waterproof, mixed and D-Sub filter

09662116502中文资料参数规格
技术参数

触点数 15

额定电流 6.5 A

绝缘电阻 10000 MΩ

排数 2

方向 Straight

针脚数 15

拔插次数 250

额定电流Max 7.5 A

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

引脚数 15

物理参数

触点材质 Copper Alloy

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买09662116502
型号: 09662116502
制造商: Harting Technology Group 哈丁电子
描述:D-Sub标准连接器 DSUB SV FEM SSDP STR15P PL2 NUT 4-40
替代型号09662116502
型号/品牌 代替类型 替代型号对比

09662116502

Harting Technology Group 哈丁电子

当前型号

当前型号

XM2F-1540-132L

欧姆龙

功能相似

09662116502和XM2F-1540-132L的区别
