034-1030-12G

射频/同轴连接器, HD BNC 同轴, 直角隔板安装插座, 通孔安装 直角, 75 ohm, 黄铜

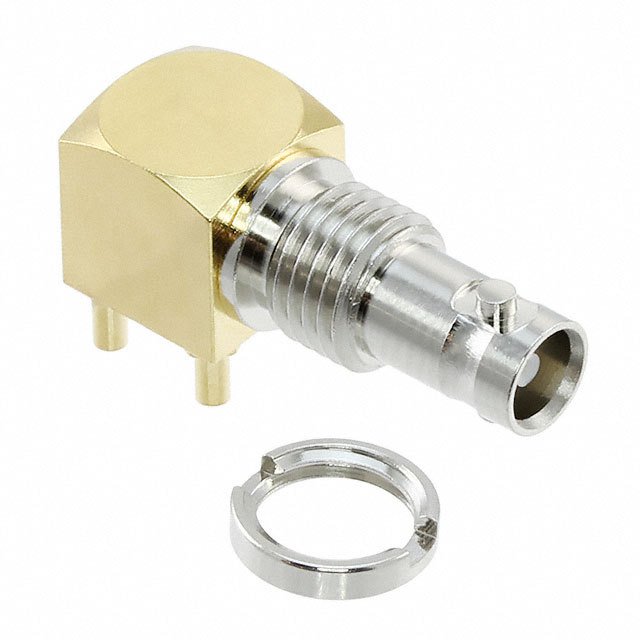

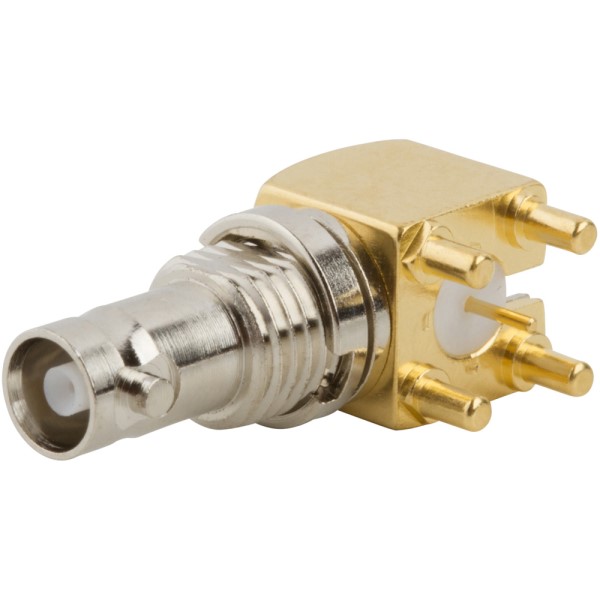

The from RF is a HD BNC PC Through Hole Mount Right-Angle Bulkhead Jack for 1.58mm 0.062" PCB thickness and 3mm 0.118" max. panel thickness. This 75-ohm high-definition PCB connector is designed for 12G-SDI video applications and provides a crystal clear signal transmission on a single channel.

.

12 Gb/s performance per SMPTE standard

.

One channel for 4K or Ultra-HD quality

.

Familiar BNC 2-stud bayonet coupling mechanism

.

Nickel-plated front body, cap and spanner nut

.

Gold-plated brass rear body

.

Gold-plated phosphor bronze contact

.

Impedance is 75 ohm

.

Frequency range is DC-18GHz

.

Min. dielectric withstanding voltage is 1000Vrms

.

Temperature range from -65°C to +165°C
