DIN 41612 M 连接器和附件DIN 41612 公/母边缘连接器 焊接引脚 无特殊触点 根据 IEC 60 603-2,性能水平为 2 ### DIN41612 - 混合触点系列DIN 41612 / 41617 和模块连接器,用于所有 19 英寸 Eurocard 机架系统中的互连。 接头与 RS 19 英寸子架系统兼容。 典型应用包括电信、数据通信、测量和控制。 不同的连接类型包括: 直角插入式电缆与底板线连接。 两块并行印刷电路板上下连接。 用于前面板或后面板 的输入/输出。
DIN 41612 M 和附件
DIN 41612 公/母边缘连接器
焊接引脚
无特殊触点
根据 IEC 60 603-2,性能水平为 2
### DIN41612 - 混合触点系列
DIN 41612 / 41617 和模块连接器,用于所有 19 英寸 Eurocard 机架系统中的互连。 接头与 RS 19 英寸子架系统兼容。 典型应用包括电信、数据通信、测量和控制。 不同的连接类型包括:
直角插入式电缆与底板线连接。
两块并行印刷电路板上下连接。
用于前面板或后面板 的输入/输出。
得捷:
CONN DIN RCPT 48POS PCB
欧时:
### DIN 41612 M 连接器和附件DIN 41612 公/母边缘连接器 焊接引脚 无特殊触点 根据 IEC 60 603-2,性能水平为 2 ### DIN41612 - 混合触点系列DIN 41612 / 41617 和模块连接器,用于所有 19 英寸 Eurocard 机架系统中的互连。 接头与 RS 19 英寸子架系统兼容。 典型应用包括电信、数据通信、测量和控制。 不同的连接类型包括: 直角插入式电缆与底板线连接。 两块并行印刷电路板上下连接。 用于前面板或后面板 的输入/输出。
立创商城:
09032426805
贸泽:
DIN 41612 连接器 42+6P 2A FEMALE STRT
艾睿:

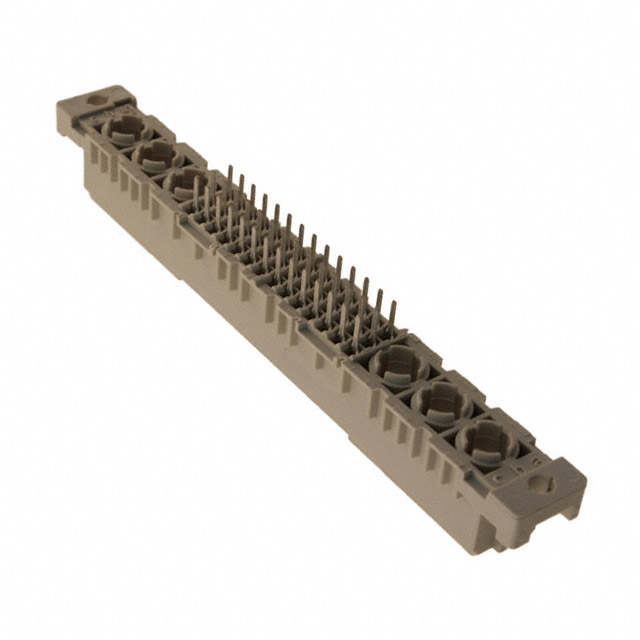

Think of Harting&s;s din 41612 09032426805 backplane connector the next time you need to connect several printed circuit boards together to form a computer system. This F connector&s;s 6 power / 42signal contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a female type gender. This device has a maximum current rating of 2 A. This product is 94.9 mm long, 12.6 mm tall and 10.5 mm deep. It uses the solder termination method. 09032426805 is housed in thermoplastic. This backplane connector has an operating temperature of -55 to 125 °C.
Allied Electronics:
DIN Type M Straight solder pins, 0.177 long for 0.125 PCB 42 + 6 Female
Verical:
Conn DIN 41612 F 6Power/42Signal POS Solder ST Thru-Hole Box
Newark:
# HARTING 09032426805 DIN 41612 Connector, DIN 41612 Series, 48 Contacts, Receptacle, 2.54 mm, 3 Row, a + b + c
触点数 48
极性 Female
触点电镀 Gold
额定电流 2 A
绝缘电阻 1000000 MΩ
排数 3
易燃性等级 UL 94 V-0
针脚数 48
拔插次数 400
额定电流Max 2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 -
引脚间距 2.54 mm
长度 94.9 mm
宽度 10.5 mm
高度 12.6 mm
封装 -
引脚间距 2.54 mm
针脚长度 4.5 mm
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
09032426805 Harting Technology Group 哈丁电子 | 当前型号 | 当前型号 |
09032422805 哈丁电子 | 完全替代 | 09032426805和09032422805的区别 |
