0926-1-15-20-75-14-11-0

MILL MAX  0926-1-15-20-75-14-11-0  弹簧探针, 尖头

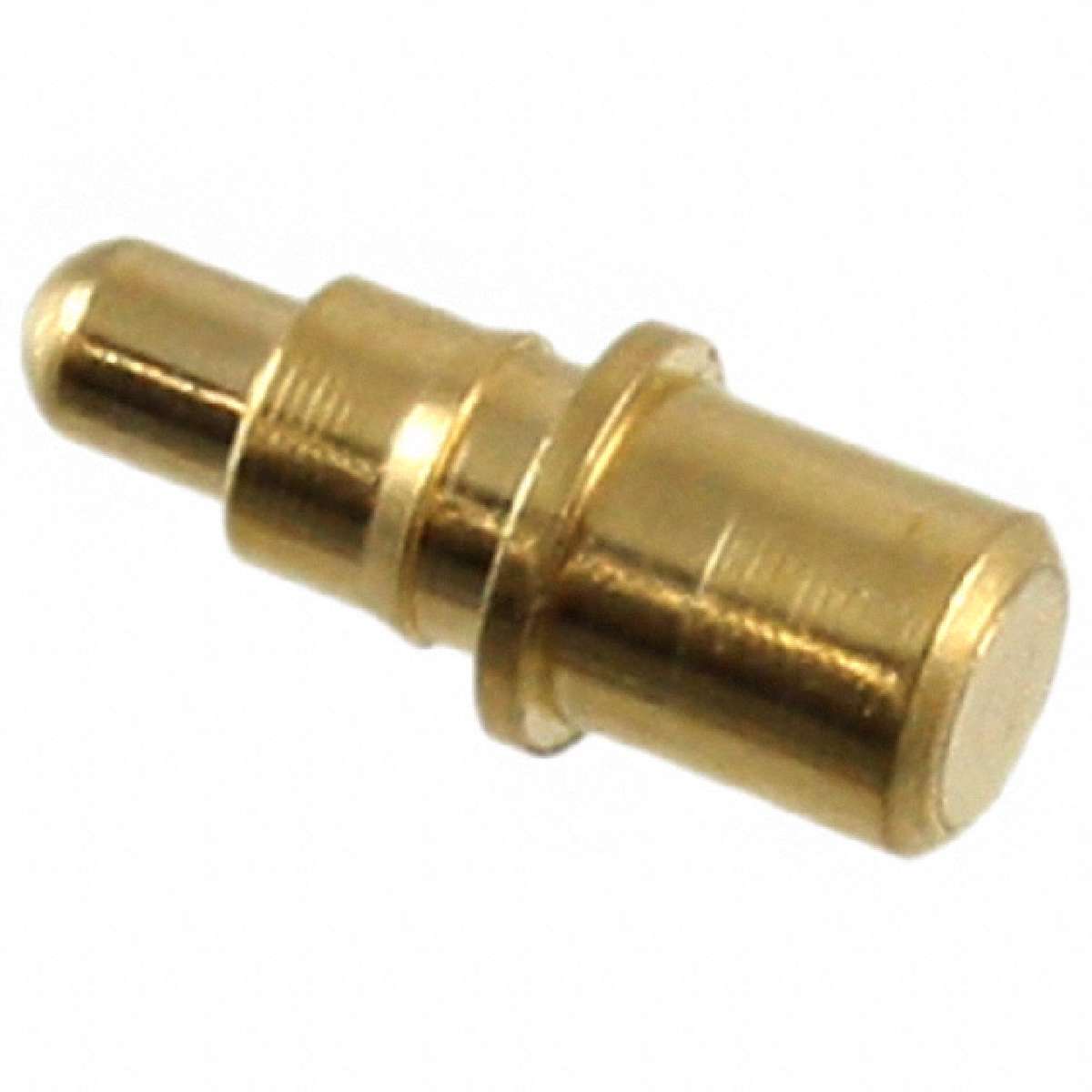

The from Mill Max is a discrete spring loaded pin contact. This low profile spring pin features a 0.0275" mid-stroke and 0.055" maximum stroke, endurance of 1,000,000cycles and a rated current of 2A continuous use 3A peak. Ideal for applications where above board height is limited. The low profile options maintain the quality and reliability of current spring pins by utilizing the same technology & internal spring components.

.

Low profile, standard stroke, solder mount in 0.074 minimum mounting hole

.

Force at mid stroke is 60g

.

Initial force pre-load is 25g

.

Gold plated beryllium copper spring

.

Copper alloy with gold finish sleeve & plunger material

.

Maximum contact resistance is 20mohm

.

Operating temperature range from -55°C to +125°C
