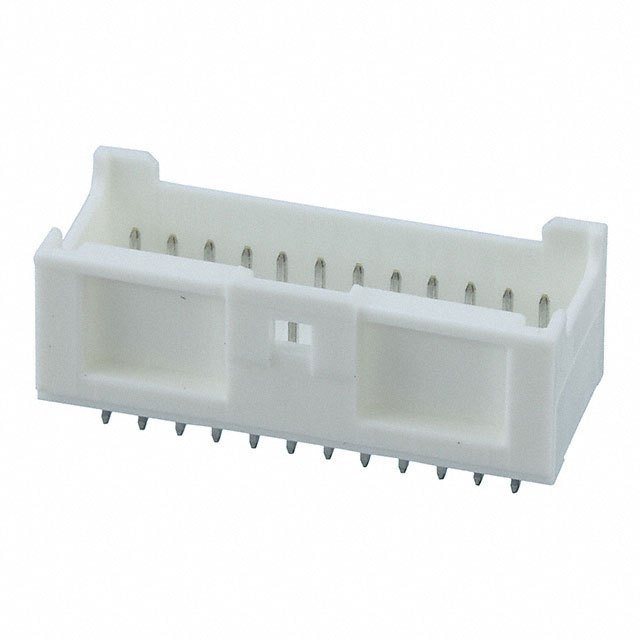

2.00毫米（ .079 “ ）间距MicroClasp ™线对板头，双排，垂直， 24电路，与PCB定位器 2.00mm .079" Pitch MicroClasp™ Wire-to-Board Header, Dual Row, Vertical, 24 Circuits, with PCB Locator
Connector Header Through Hole 24 position 0.079" 2.00mm
得捷:
CONN HEADER VERT 24POS 2MM
艾睿:
This shrouded 0559172410 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 24 contacts that are made out of brass and plated with tin over nickel. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This product is 27.4 mm long, 9.75 mm tall and 11.5 mm deep. This connector has an operating temperature of -25 to 85 °C. 0559172410 is housed in white glass filled polybutylene terephthalate. It uses the solder termination method.
Verical:
Conn Shrouded Header 4 Sides HDR 24 POS 2mm Solder ST Thru-Hole MicroClasp™ Tray
