0039301120

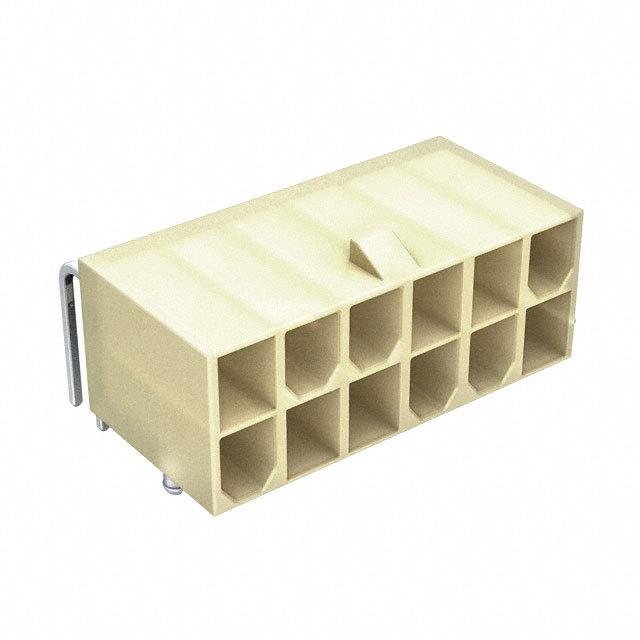

4.20毫米（ .165 “ ）间距迷你小飞度™插头，双排，直角，以管理单元塑料栓锁电路板，电路12 ，PA聚酰胺尼龙6/6 94V - 2 ，锡（Sn ）镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 12 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin Sn Plating

Connector Header Through Hole, Right Angle 12 position 0.165" 4.20mm

得捷:
CONN HEADER R/A 12POS 4.2MM

艾睿:
Use this 0039301120 power connector from Molex to power up your circuit without having to worry about energy seepage. This HDR connector&s;s 12 contacts that are made out of brass alloy and plated with tin over copper. It has a maximum voltage rating of 600 V. Its pitch is 4.2 mm. It has a right angle body orientation. It has a header type gender. This connector has a single port. This device has a maximum current rating of 13 A/contact. 0039301120 is housed in polyamide 6/6. This product is 26.4 mm long and 19.4 mm. Its 12 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.

安富利:
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bulk

Chip1Stop:
Conn Wire to Board HDR 12 POS 4.2mm Solder RA Thru-Hole Bulk

Verical:
Conn HDR 12 POS 4.2mm Solder RA Thru-Hole 12 Terminal 1 Port
