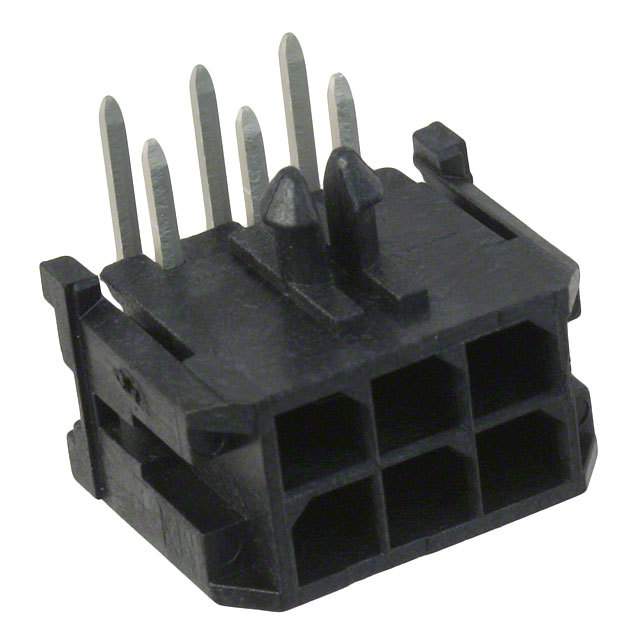

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，以管理单元塑料栓锁电路板，电路6 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits
Connector Header Through Hole, Right Angle 6 position 0.118" 3.00mm
得捷:
CONN HEADER R/A 6POS 3MM
艾睿:
Thanks to Molex&s;s wire to board 0430450601 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 6 contacts that are made out of brass alloy and plated with gold over nickel. It has a maximum voltage rating of 600 V. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. This component will be shipped in tray format. 0430450601 is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 13.15 mm long, 8.77 mm tall and 12.2 mm deep.
Chip1Stop:
Conn Wire to Board HDR 6 POS 3mm Solder RA Thru-Hole Tray
Verical:
Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port Micro-Fit 3.0™ Tray
