0430451200

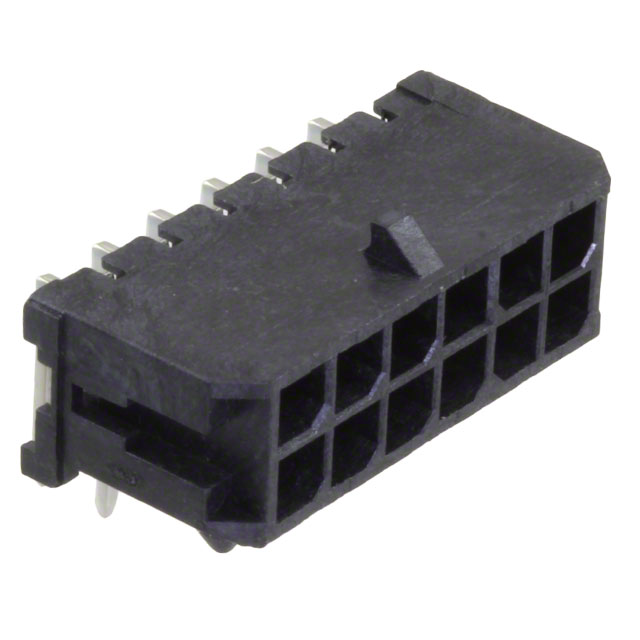

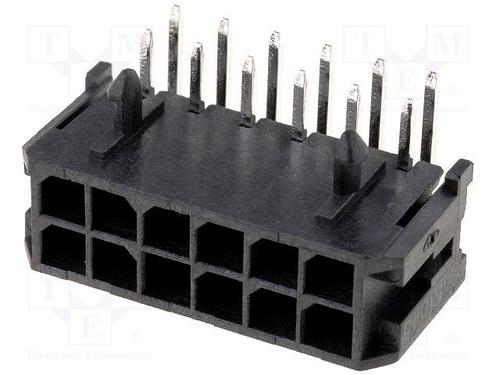

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，以管理单元塑料栓锁电路板，电路12 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 12 Circuits

针座 通孔，直角 12 位置 0.118"（3.00mm）

得捷:
CONN HEADER R/A 12POS 3MM

艾睿:

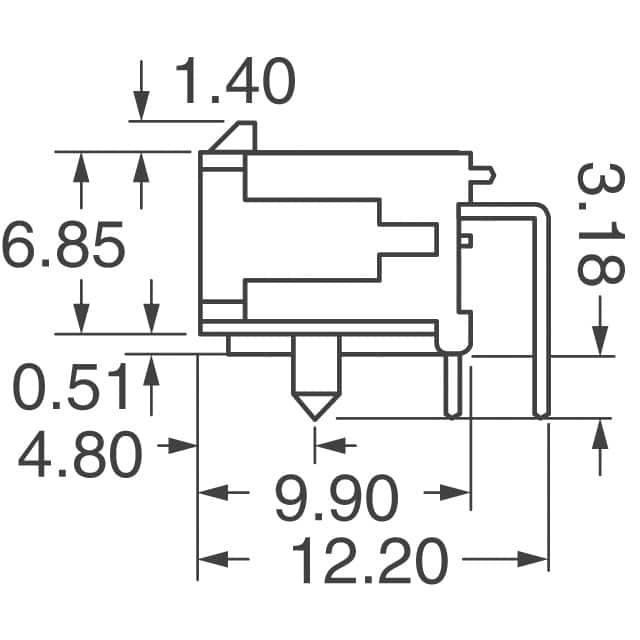

Mount this wire to board 0430451200 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 12 contacts that are made out of brass alloy and plated with tin over nickel. It has a header type gender. Its pitch is 3 mm. This is a 2-row connector. It has a maximum voltage rating of 600 V. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 22.15 mm long, 8.77 mm tall and 12.2 mm deep. It uses the solder termination method. 0430451200 is housed in black liquid crystal polymer. This connector has an operating temperature of -40 to 105 °C.

安富利:
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray

Chip1Stop:
Conn Wire to Board HDR 12 POS 3mm Solder RA Thru-Hole Tray

Verical:
Conn Wire to Board HDR 12 POS 3mm Solder RA Side Entry Thru-Hole Micro-Fit 3.0™ Tray
