0527461571

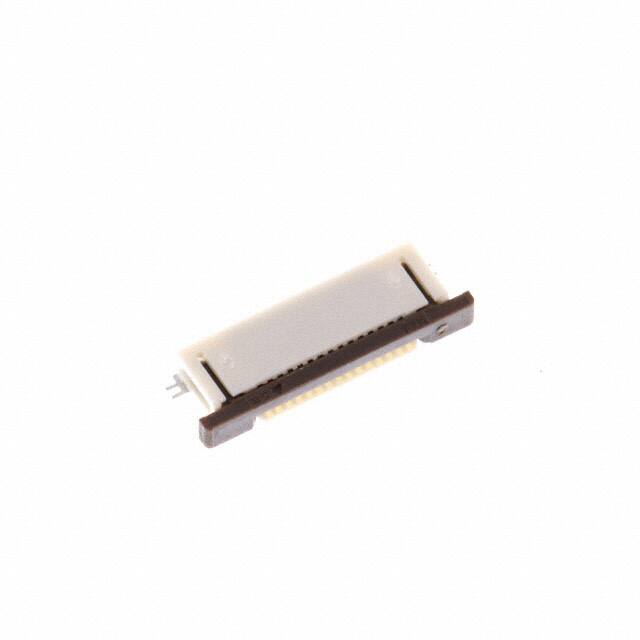

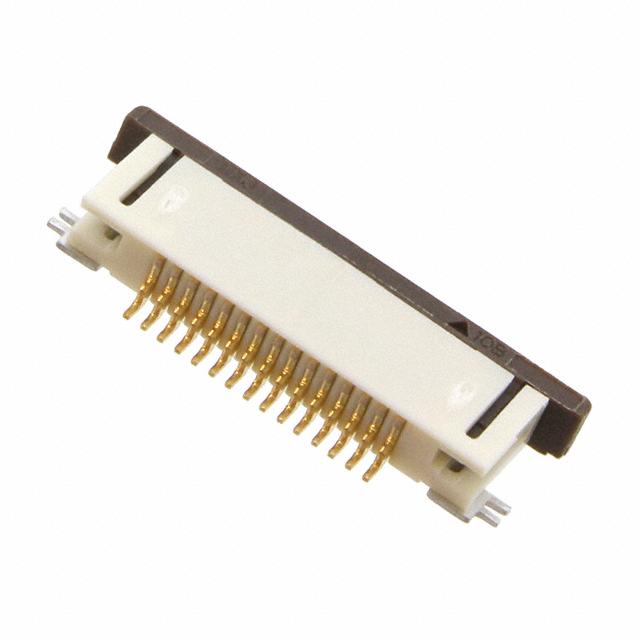

0.50毫米（ 0.020 “ ）间距FFC / FPC连接器，直角， SMT ， ZIF ，底部ContactStyle ， 15电路，无铅，金（Au ），电镀，高阻隔性包装 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Bottom ContactStyle, 15 Circuits, Lead-free, Gold Au Plating, High Barrier Packaging

This ffc/fpc connector flexible circuit from can operate as a flexible medium between two different planes or decks. This socket type connector"s 15 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 50 V. Its pitch is 0.5 mm. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. 0527461571 is housed in nylon 4/6. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 13.6 mm long, 2 mm tall and 5 mm deep. It uses the solder termination method.
