0878331020

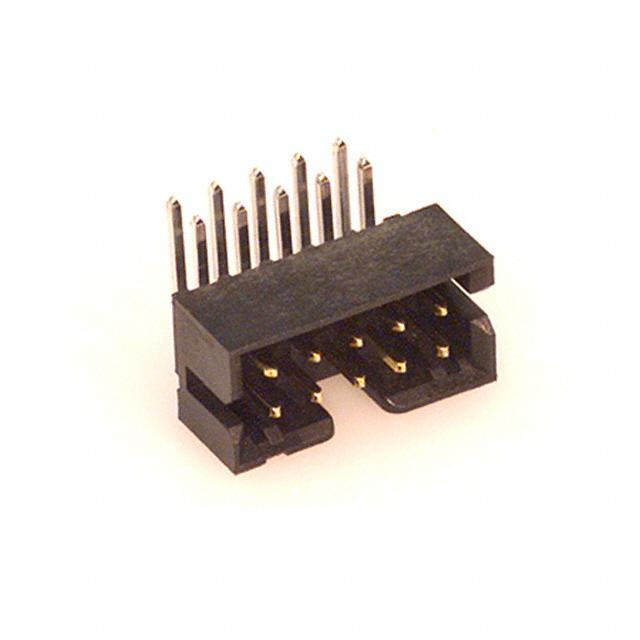

0878331020图片1
0878331020图片2
0878331020图片3
0878331020概述

2.00毫米( 0.079 )间距的Milli-电网™接头,直角,带罩,无铅, 10电路, 0.38μm ( 15μ ),金(Au ),电镀,无PCB定位器 2.00mm .079 Pitch Milli-Grid™ Header, Right Angle, Shrouded, Lead-free, 10 Circuits, 0.38μm 15μ Gold Au Plating, without PCB Locator

针座 通孔,直角 10 位置 0.079"(2.00mm)


得捷:
CONN HEADER R/A 10POS 2MM


艾睿:
Look no further than the shrouded 0878331020 header connector from Molex, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 125 V. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2 mm. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. 0878331020 is housed in black nylon 4/6. This product is 12.65 mm long, 6.3 mm tall and 8.4 mm deep.


安富利:
Conn Shrouded Header HDR 10 POS 2mm Solder RA Thru-Hole Tube


Chip1Stop:
Conn Shrouded Header HDR 10 POS 2mm Solder RA Thru-Hole Tube


Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 2mm Solder RA Side Entry Thru-Hole Milli-Grid™ Tube


0878331020中文资料参数规格
技术参数

触点数 10

绝缘电阻 1000 MΩ

排数 2

针脚数 10

拔插次数 100

额定电流Max 2A/触头

工作温度Max 105 ℃

工作温度Min -55 ℃

额定电压Max 125 V

接触电阻Max 40 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 6.3 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Tube

制造应用 汽车,通用,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0878331020
型号: 0878331020
制造商: Molex 莫仕
描述:2.00毫米( 0.079 )间距的Milli-电网™接头,直角,带罩,无铅, 10电路, 0.38μm ( 15μ ),金(Au ),电镀,无PCB定位器 2.00mm .079 Pitch Milli-Grid™ Header, Right Angle, Shrouded, Lead-free, 10 Circuits, 0.38μm 15μ Gold Au Plating, without PCB Locator
