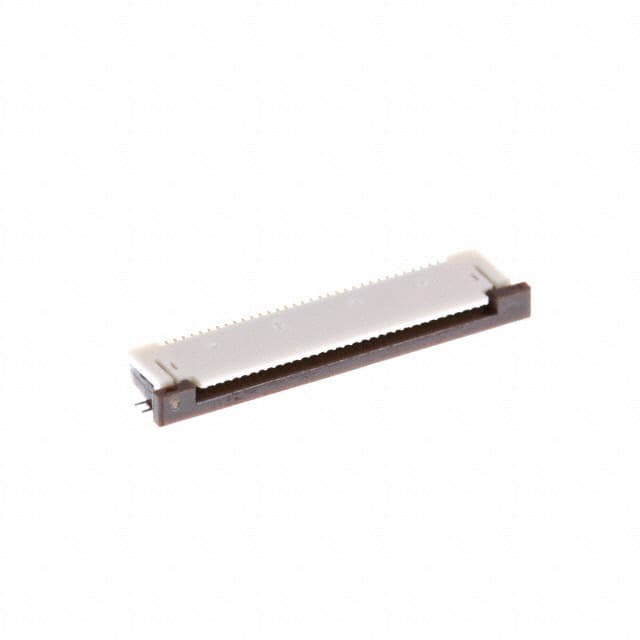

0541043331图片1

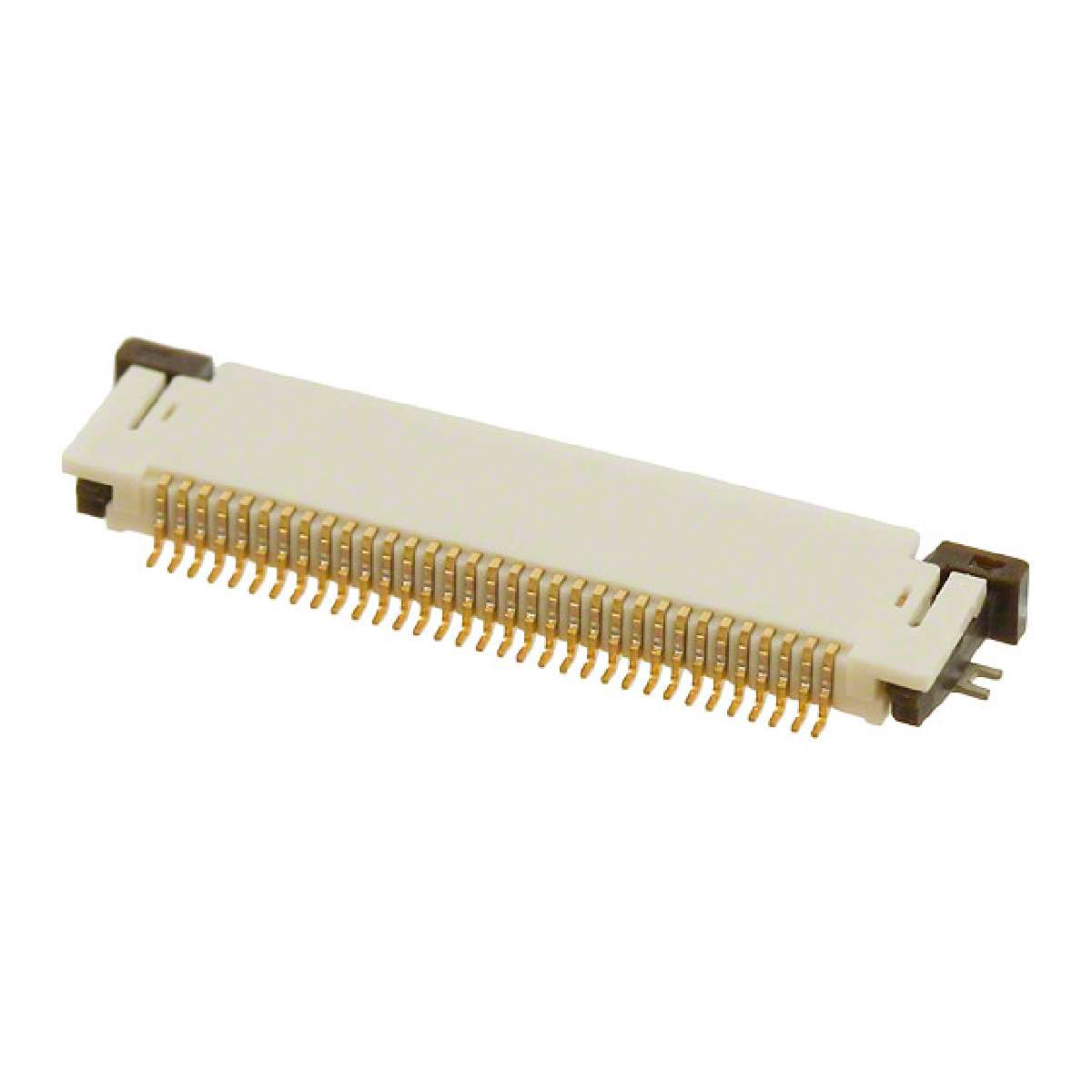

0541043331图片2
0541043331图片3
0541043331图片4
0541043331图片5
0541043331图片6
0541043331图片7
0541043331图片8
0541043331概述

0.50毫米( 0.020 “ )间距FFC / FPC连接器,直角, SMT , ZIF ,顶部触点类型33电路,无铅, 0.1微米( 4μ ”),金(Au )镀层 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Top Contact Style 33 Circuits, Lead-free, 0.1μm 4μ" Gold Au Plating

33 位置 FFC,FPC 触点,顶部 0.020"(0.50mm) 表面贴装,直角


得捷:
CONN FFC FPC TOP 33POS 0.5MM R/A


艾睿:
The fpc connector 0541043331 flexible flat cable from Molex can help you save valuable space by running multiple electrical channels over a flat, ribbon-like cable. Its pitch is 0.5 mm. It has a right angle body orientation. This is a 1-row connector. This socket type connector&s;s 33 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 V. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This flexible flat cable has an operating temperature of -20 to 85 °C. 0541043331 is housed in natural nylon 4/6. This product is 22 mm long, 2 mm tall and 5.6 mm deep. It uses the solder termination method.


安富利:
Conn FPC Connector SKT 33 POS 0.5mm Solder RA SMD Embossed T/R


Verical:
Conn FPC Connector SKT 33 POS 0.5mm Solder RA SMD Easy-On™ T/R


0541043331中文资料参数规格
技术参数

触点数 33

额定电流 0.5 A

绝缘电阻 50 MΩ

排数 1

针脚数 33

拔插次数 20

额定电流Max 0.5A/触头

工作温度Max 85 ℃

工作温度Min -20 ℃

额定电压Max 50 V

额定电压 50 V

接触电阻Max 20 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 2 mm

物理参数

外壳颜色 White

触点材质 Phosphor Bronze

工作温度 -20℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0541043331
型号: 0541043331
制造商: Molex 莫仕
描述:0.50毫米( 0.020 “ )间距FFC / FPC连接器,直角, SMT , ZIF ,顶部触点类型33电路,无铅, 0.1微米( 4μ ”),金(Au )镀层 0.50mm .020" Pitch FFC/FPC Connector, Right Angle, SMT, ZIF, Top Contact Style 33 Circuits, Lead-free, 0.1μm 4μ" Gold Au Plating
