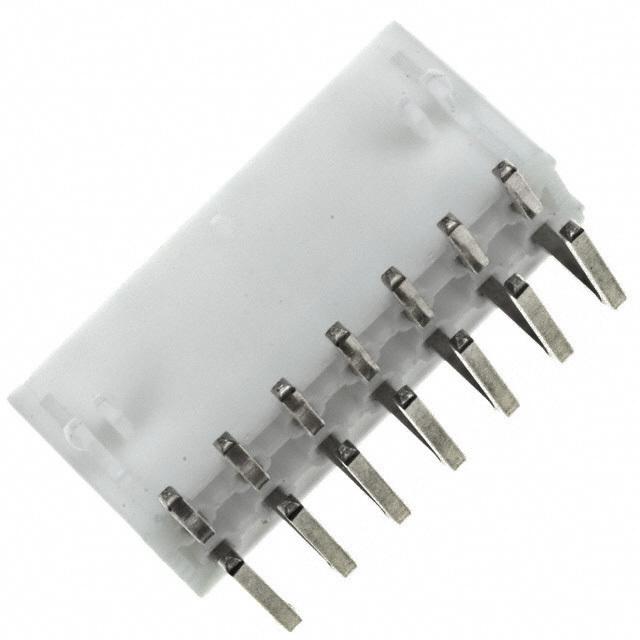

0039301142图片1
0039301142图片2
0039301142图片3
0039301142图片4
0039301142概述

4.20毫米( .165 “ )间距迷你适合小头,双排,直角,以管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock

Connector Header Through Hole, Right Angle 14 position 0.165" 4.20mm


得捷:
CONN HEADER R/A 14POS 4.2MM


艾睿:
Whether you have an AC or DC power entry module, this 0039301142 power connector from Molex comes in a variety of types to support all sorts of modules. This HDR connector&s;s 14 contacts that are made out of brass alloy and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 600 V. Its pitch is 4.2 mm. This connector has a single port. It has a header type gender. This device has a maximum current rating of 13 A/contact. 0039301142 is housed in polyamide 6/6. This product is 30.6 mm long, 11.4 mm tall and 19.4 mm deep. Its 14 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.


安富利:
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray


Chip1Stop:
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Thru-Hole Tray


Verical:
Conn Wire to Board HDR 14 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr™ Bag


0039301142中文资料参数规格
技术参数

触点数 14

绝缘电阻 1000 MΩ

排数 2

针脚数 14

拔插次数 30

额定电流Max 13A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 30.6 mm

宽度 19.4 mm

高度 11.4 mm

物理参数

外壳颜色 Natural, White

颜色 Natural

触点材质 Brass

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Bag

制造应用 通用,工业,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0039301142
型号: 0039301142
制造商: Molex 莫仕
描述:4.20毫米( .165 “ )间距迷你适合小头,双排,直角,以管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock
替代型号0039301142
型号/品牌 代替类型 替代型号对比

0039301142

Molex 莫仕

当前型号

当前型号

39-30-1141

莫仕

完全替代

0039301142和39-30-1141的区别
