031-71064概述

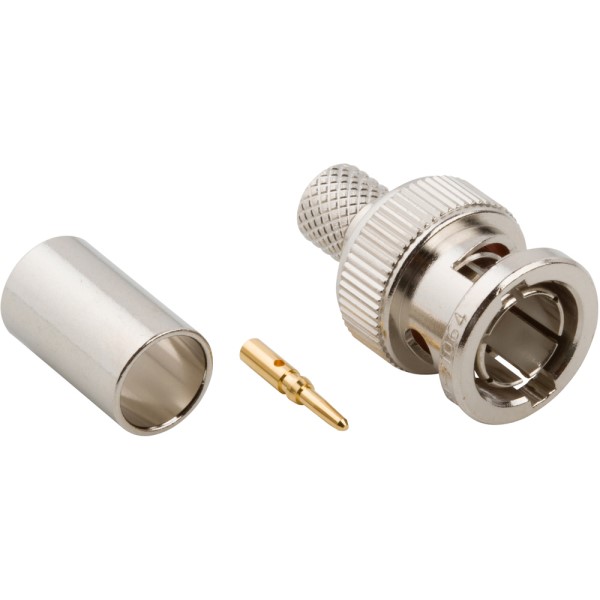

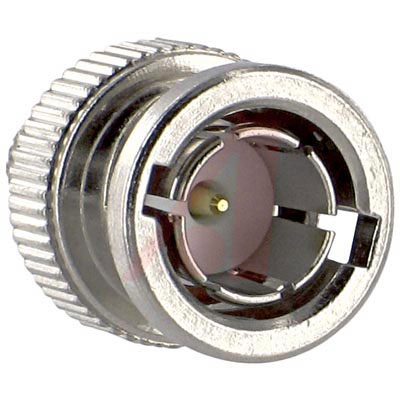

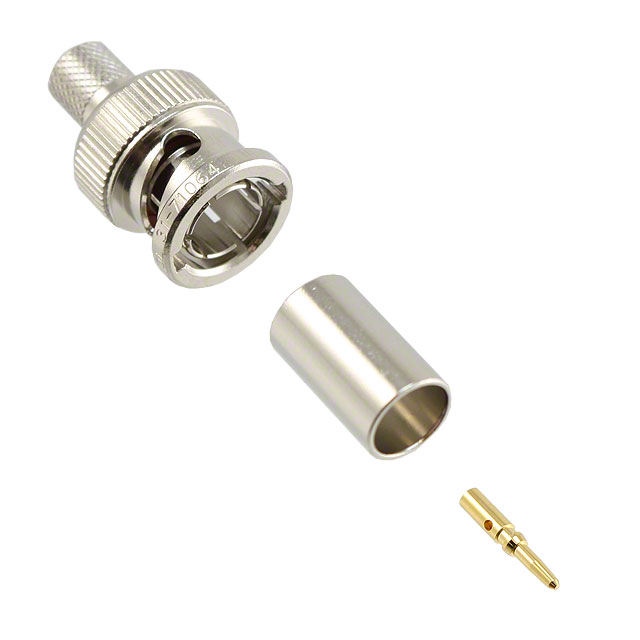

Conn BNC PL 0Hz to 4GHz 75Ω Crimp ST Cable Mount Gold

These connectors can be used in a variety of applications where true 75 Ohm performance is needed to insure lower signal distortion. They may be matched with standard 50 Ohm BNC without damage or intermittence.


得捷:
CONN BNC PLUG STR 75 OHM CRIMP


艾睿:
Conn BNC 0Hz to 4GHz 75Ohm Crimp ST Cable Mount PL Gold


Allied Electronics:
connector, rf coaxial, bnc straight plug, crimp-crimp, rg6 typesee notes, 75 ohm-t2


Verical:
Conn BNC 0Hz to 4GHz 75Ohm Crimp ST Cable Mount PL Gold


MASTER:
RF Connector BNC Straight Crimp Plug for RG-6 75 Ohm


Online Components:
RF Connector BNC Straight Crimp Plug for RG-6 75 Ohm


Electro Sonic:
RF Connector BNC Straight Crimp Plug for RG-6 75 Ohm


031-71064中文资料参数规格
技术参数

频率 4 GHz

拔插次数 500

工作温度Max 165 ℃

工作温度Min -65 ℃

额定电压 500 V

物理参数

外壳颜色 Silver

触点材质 Brass

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694010

数据手册

在线购买031-71064
型号: 031-71064
描述:Conn BNC PL 0Hz to 4GHz 75Ω Crimp ST Cable Mount Gold
