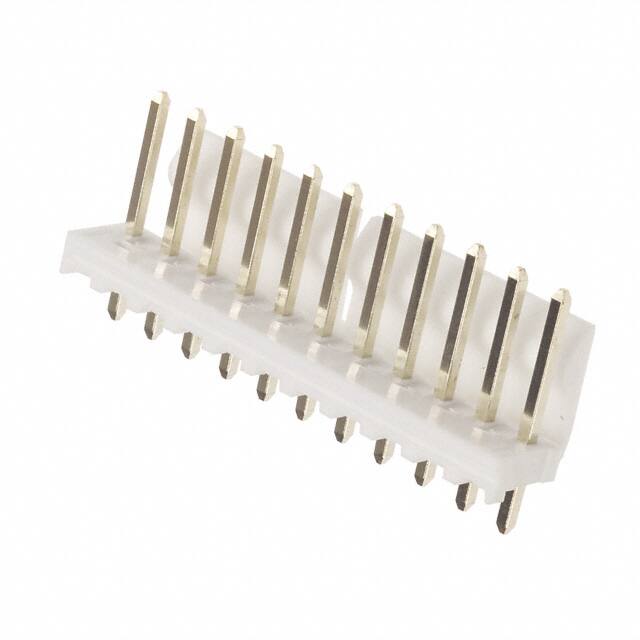

3.96毫米（ .156 “ ）间距KK®固体头，垂直，摩擦锁， 11电路，锡（Sn ）镀层 3.96mm .156" Pitch KK® Solid Header, Vertical, Friction Lock, 11 Circuits, Tin Sn Plating
针座 通孔 11 位置 0.156"（3.96mm）
得捷:
CONN HEADER VERT 11POS 3.96MM
艾睿:
Mount this wire to board 0026604110 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 11 contacts that are made out of brass and plated with tin over copper. Its pitch is 3.96 mm. It has a straight body orientation. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 7 A/contact. 0026604110 is housed in natural polyester. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. This product is 43.43 mm long, 14.73 mm tall and 10.01 mm deep.
Chip1Stop:
Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Bag
Verical:
KK 396 Header, Vertical, Friction Lock, 11 Circuits, Tin Sn Plating
