0432028916

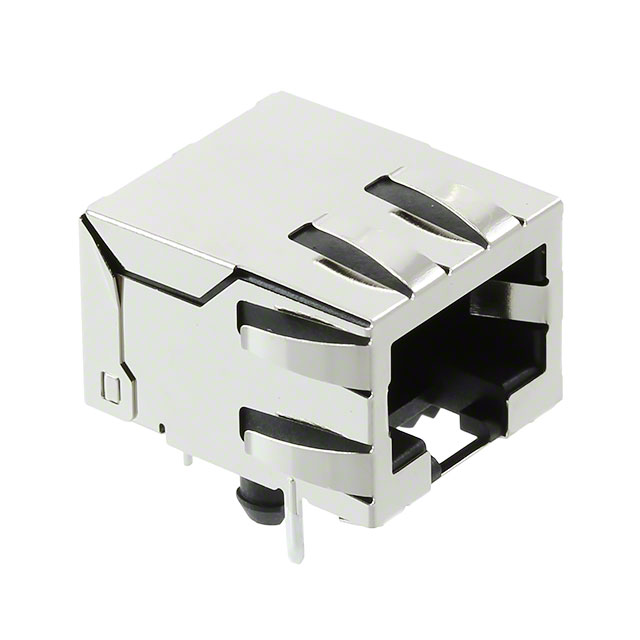

模块化插座，直角，低调，屏蔽，无面板接地片，底部接地片，前部位置的PCB接地接头， 8/8 Modular Jack, Right Angle, Low Profile, Shielded, No Panel Grounding Tabs, with Bottom Grounding Tab, Front Position PCB Ground Tab, 8/8

This rj-45 telephone and telecom connector from is the perfect connector for high-power applications. This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a female type gender. It has a maximum voltage rating of 125 V. This connector has a single port. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. This part has an operating temperature of -40 to 70 °C. This product is 18.35 mm long, 13.34 mm tall and 18.64 mm deep. 0432028916 is housed in black nylon. It uses the solder termination method.
