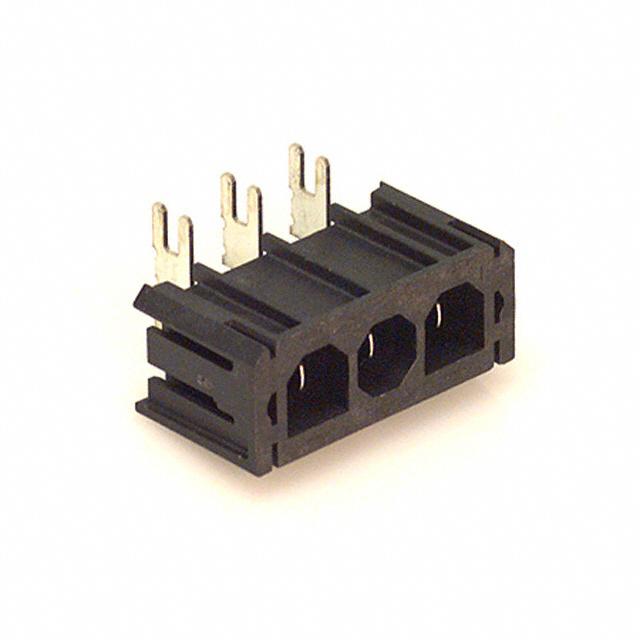

Conn Power HDR 3POS 7.49mm Solder RA Thru-Hole 6 Terminal 1Port Sabre™ Bag
位置 接头，公型刀片 焊接 0.295"（7.50mm） 通孔，直角
得捷:
CONN HDR 3POS 7.50MM R/A SLDR
立创商城:
0431601103
艾睿:
Use this 0431601103 power connector from Molex to power up your circuit without having to worry about energy seepage. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over copper. It has a header type gender. It has a right angle body orientation. Its pitch is 7.49 mm. It has a maximum voltage rating of 600 V. This connector has a single port. 0431601103 is housed in nylon 4/6. This device has a maximum current rating of 18 A/contact. This component will be shipped in tray format. Its 6 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 75 °C. This product is 28.58 mm long, 13.38 mm tall and 19.79 mm deep.
Chip1Stop:
Conn Wire to Board HDR 3 POS 7.49mm Solder RA Thru-Hole Tray
Verical:
PCB Connector HDR 3 POS 7.49mm Solder RA Thru-Hole 6 Terminal 1 Port
