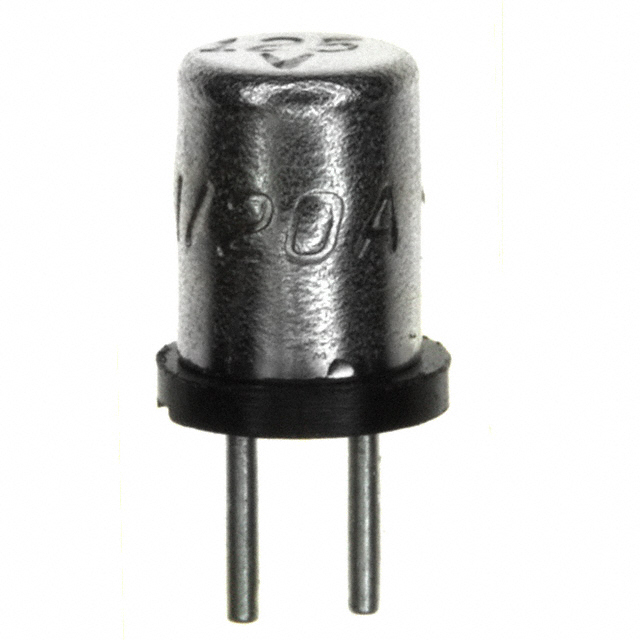

272 系列 Ø 5.97 x 7.3 mm 125 V 0.62 A 径向引线 特快熔断 保险丝
Description
Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug–in or radial lead styles and a complete range of ampere ratings from 1/500 to 5A to suit a wide variety of design needs.
Features
Military grade available
High breaking capacity
Clear cover option to view fuse element status
Available from very low ampere of 2mA to 5A
Plug-in with short or long leads option
Applications
Printed circuit boards and similar equipment
Electronic components
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.062 A
电阻 2.55 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
长度 7.3 mm
高度 7.3 mm
直径 5.97 mm
封装 Radial, CAN
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
