0915014概述

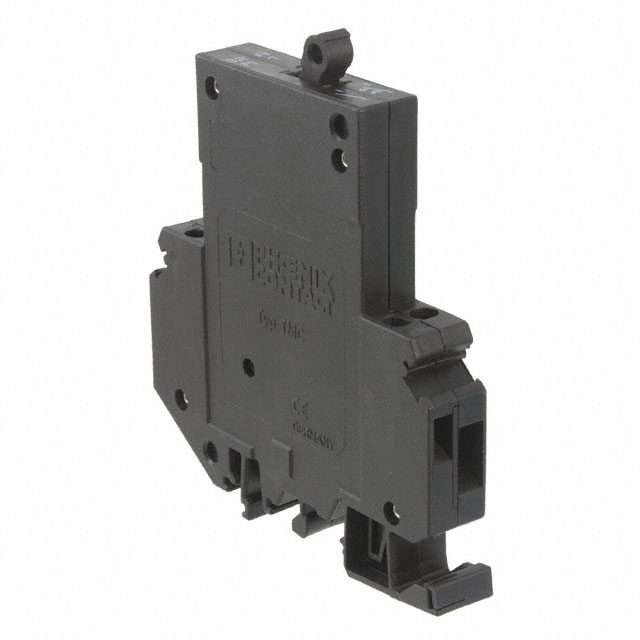

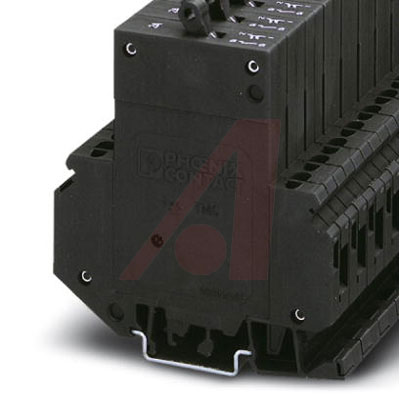

3A 2Pole Thermal Magnetic Circuit Breaker, 250V ac, 65V dc TMC

**Thermomagnetic Circuit Breaker - M1**

Thermomagnetic circuit breaker with universal foot for mounting on NS 32 or NS 35


立创商城:
0915014


贸泽:
Circuit Breakers TMC 2 M1 120 3.0A


艾睿:
Circuit Breaker Thermomagnetic 2Pole 3A 250VAC/65VDC


Allied Electronics:
3A 2 Pole Thermal Magnetic Circuit Breaker, 250 V ac, 65 V dc TMC


Verical:
Circuit Breaker Thermomagnetic 2Pole 3A 250VAC/65VDC


MASTER:
Circuit Breaker Thermomagnetic 2Pole 3A 250VAC/65VDC


Online Components:
Circuit Breaker Thermomagnetic 2Pole 3A 250VAC/65VDC


Electro Sonic:
Thermomagnetic circuit breaker - 2-pos. - normal blow - 1 N/O contact and 1 N/C contact - with universal foot ...


0915014中文资料参数规格
技术参数

额定电流 3 A

工作温度Max 60 ℃

工作温度Min -30 ℃

额定电压 250VAC, 65VDC

封装参数

安装方式 DIN Rail, Screw

封装 -

外形尺寸

宽度 12.5 mm

高度 82.5 mm

封装 -

物理参数

颜色 Black

工作温度 -30℃ ~ 60℃

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536200020

数据手册

在线购买0915014
型号: 0915014
描述:3A 2Pole Thermal Magnetic Circuit Breaker, 250V ac, 65V dc TMC
