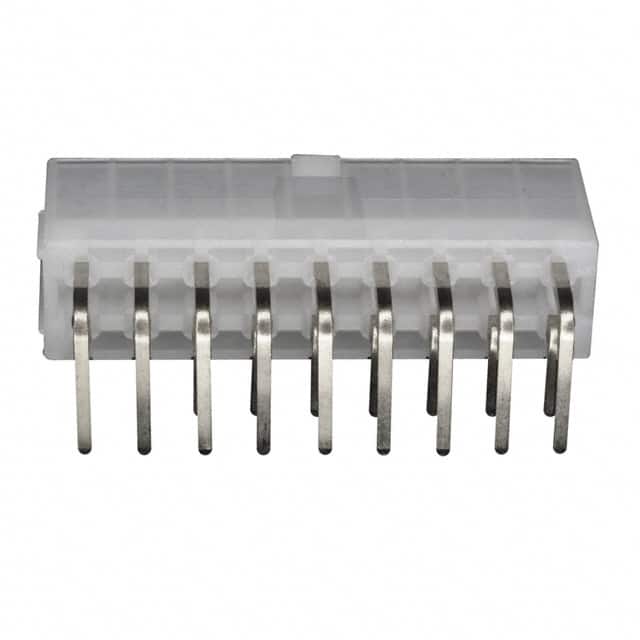

4.20毫米（ .165 “ ）间距迷你小飞度™插头，双排，直角，以管理单元塑料栓锁电路板，电路18 ，PA聚酰胺尼龙6/6 94V - 2 ， 0.76μm （ 30μ ” ）金（Au ）镀层 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 18 Circuits, PA Polyamide Nylon 6/6 94V-2, 0.76μm 30μ" Gold Au Plating
Connector Header Through Hole, Right Angle 18 position 0.165" 4.20mm
得捷:
CONN HEADER R/A 18POS 4.2MM
艾睿:
Use this 0039301181 power connector from Molex to connect a power supply to a circuit. This HDR connector&s;s 18 contacts that are made out of brass alloy and plated with gold over nickel. It has a right angle body orientation. This connector has a single port. Its pitch is 4.2 mm. It has a header type gender. It has a maximum voltage rating of 600 V. 0039301181 is housed in nylon. This device has a maximum current rating of 13 A/contact. Its 18 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 39 mm long and 19.4 mm.
安富利:
Conn Wire to Board HDR 18 POS 4.2mm Solder RA Thru-Hole Bulk
Chip1Stop:
Conn Wire to Board HDR 18 POS 4.2mm Solder RA Thru-Hole Bulk
