0348-0-33-01-34-27-10-0概述

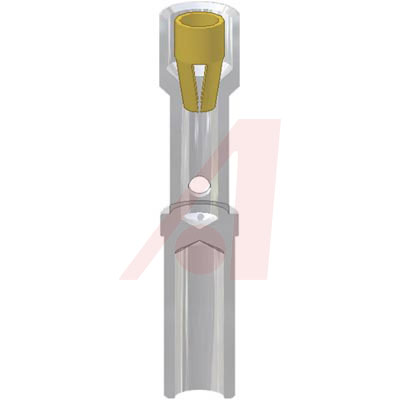

Receptacle, Pin; Brass Alloy Shell, Beryllium Copper Alloy Contact; 34

Crimp Barrel, Pin Receptacle

200 μ" tin-plated precision machine brass shell fitted with stamped and hardened, 30 μ" gold-plated beryllium copper multi-finger spring contact.


艾睿:
Need a strong connection for your wires? This 0348-0-33-01-34-27-10-0 connector contact from Mill-Max Mfg. Corp. is the most traditional form of connections binding. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 8 A. This has a Connector Headers and PCB Receptacles connector. This product comes packaged in bulk, so the parts will be stored loosely. This product is 13.46 mm long and 2.67 mm. This connector contact has a minimum operating temperature of -55 °C and a maximum of 125 °C. It uses the crimp termination method.


Allied Electronics:
Receptacle, Pin; Brass Alloy Shell, Beryllium Copper Alloy Contact; 34


Verical:
Contact SKT 34 Size Crimp ST Cable Mount Bulk


0348-0-33-01-34-27-10-0中文资料参数规格
技术参数

触点数 1

极性 Female

触点电镀 Gold over Nickel

额定电流 8 A

拔插次数 100

额定电流Max 8 A

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 PCB

引脚数 34

物理参数

触点材质 Beryllium Copper

材质 Brass

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

数据手册

在线购买0348-0-33-01-34-27-10-0
型号: 0348-0-33-01-34-27-10-0
制造商: Mill-Max 仕元机械
描述:Receptacle, Pin; Brass Alloy Shell, Beryllium Copper Alloy Contact; 34
替代型号0348-0-33-01-34-27-10-0
型号/品牌 代替类型 替代型号对比

0348-0-33-01-34-27-10-0

Mill-Max 仕元机械

当前型号

当前型号

0348-0-33-80-34-27-10-0

仕元机械

功能相似

0348-0-33-01-34-27-10-0和0348-0-33-80-34-27-10-0的区别
