02-09-1155

02-09-1155图片1
02-09-1155图片2
02-09-1155图片3
02-09-1155概述

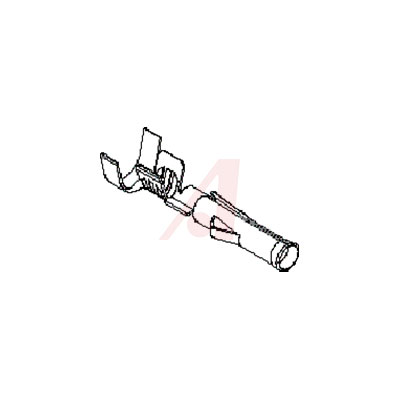

CRIMP TERM FEMALE 093 / ( 2.36 ) DIA / 14 THRU 18 AWG电线 CRIMP TERM FEMALE 093/2.36DIA/ FOR 14 THRU 18 AWG WIRE

Standard .093" Pin and Socket Connectors

Standard .093" pin and socket power connectors from provide a flexible design choice for medium-power applicationsMolex"s Standard .093" pin and socket power connectors are an industry standard connector system based on an .093" pin diameter. Molex’s 2.36mm diameter terminals are used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 products.

The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14.0A 9.0A with the largest circuit size housings; 17.0A with high-current/low-force terminals. The system is available in wire-to-wire and wire-to-board configurations, up to 15 circuits.

02-09-1155中文资料参数规格
技术参数

电路数 1 ~ 15

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买02-09-1155
型号: 02-09-1155
制造商: Molex 莫仕
描述:CRIMP TERM FEMALE 093 / ( 2.36 ) DIA / 14 THRU 18 AWG电线 CRIMP TERM FEMALE 093/2.36DIA/ FOR 14 THRU 18 AWG WIRE
