02-09-5170

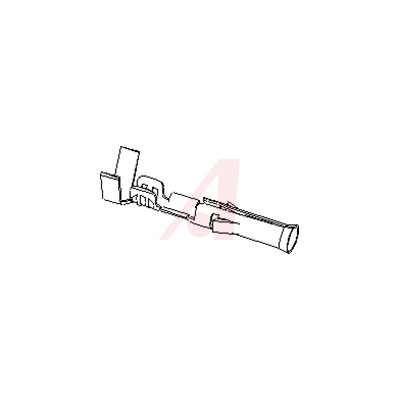

02-09-5170图片1
02-09-5170图片2
02-09-5170概述

2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子, 4550系列,女,与金(Au )镀磷青铜触点, 14-20 AWG ,袋 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 4550,Female, with Gold Au Plated Phosphor Bronze Contact, 14-20 AWG, Bag

Standard .093" Pin and Socket Connectors

Standard .093" pin and socket power connectors from provide a flexible design choice for medium-power applicationsMolex"s Standard .093" pin and socket power connectors are an industry standard connector system based on an .093" pin diameter. Molex’s 2.36mm diameter terminals are used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 products.

The terminals can be used in either crimp housings or crimp receptacles and are capable of carrying up to 14.0A 9.0A with the largest circuit size housings; 17.0A with high-current/low-force terminals. The system is available in wire-to-wire and wire-to-board configurations, up to 15 circuits.

02-09-5170中文资料参数规格
物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

数据手册

在线购买02-09-5170
型号: 02-09-5170
制造商: Molex 莫仕
描述:2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子, 4550系列,女,与金(Au )镀磷青铜触点, 14-20 AWG ,袋 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 4550,Female, with Gold Au Plated Phosphor Bronze Contact, 14-20 AWG, Bag
