0395000016

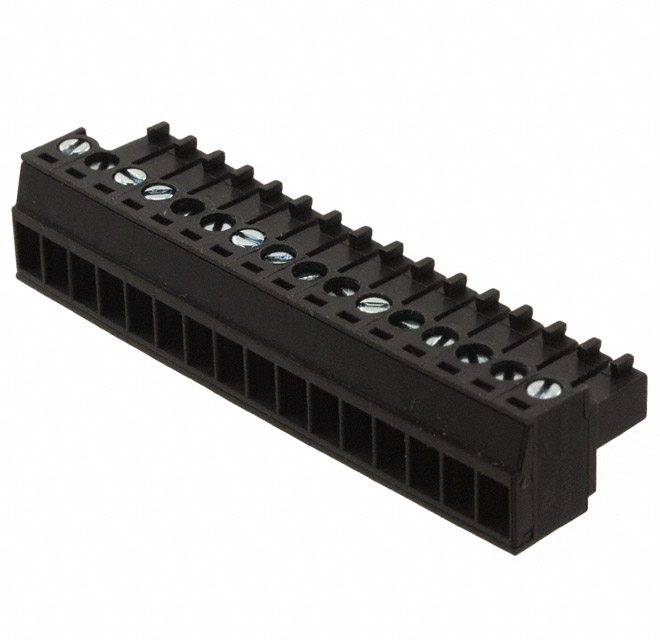

Conn Eurostyle Block F 16POS 3.5mm Screw RA Cable Mount 8A/Contact

Create a bridge between two sides of a circuit by implementing this eurostyle block PCB terminal block from . This F connector"s 16 contacts that are made out of brass and plated with tin. It has a maximum voltage rating of 300 V. This is a 1-row connector. Its pitch is 3.5 mm. It has a female type gender. It has a right angle body orientation. 0395000016 is housed in polyamide 6/6. This device has a maximum current rating of 8 A/contact. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. Its wire is 16-30 AWG. This product is 56.8 mm long, 11.1 mm tall and 15.5 mm deep.
