0902250概述

断路器 TMC 62C 20A

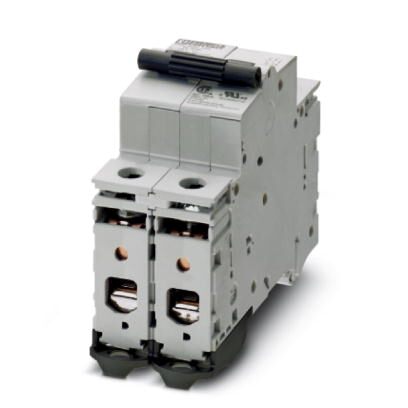

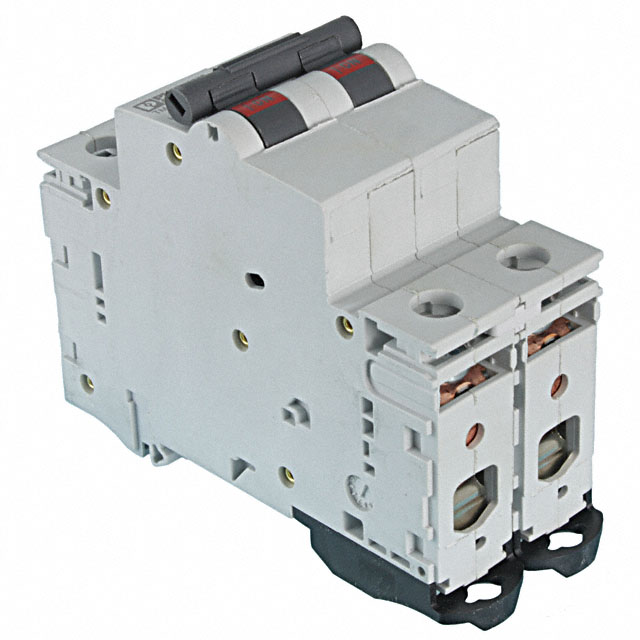

Thermomagnetic circuit breaker, two-pole, 20 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either S or H remote signal. Protects wiring and equipment from overcurrent and short circuit faults.


贸泽:
断路器 TMC 62C 20A


艾睿:
Circuit Breaker Thermal Magnetic 2Pole 20A 415VAC


Allied Electronics:
TMC 62C 20A


MASTER:
Thermomagnetic circuit breaker - two-pole - 20 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either S or H remote signal. Protects wiring and equipment from overcurrent and short circuit faults.


Online Components:
Thermomagnetic circuit breaker, two-pole, 20 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either ...


0902250中文资料参数规格
技术参数

额定电流 20 A

工作温度Max 55 ℃

工作温度Min -25 ℃

额定电压 415 VAC

封装参数

安装方式 Screw, DIN Rail

外形尺寸

宽度 36 mm

高度 86 mm

物理参数

颜色 Gray

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536200020

数据手册

在线购买0902250
型号: 0902250
描述:断路器 TMC 62C 20A
