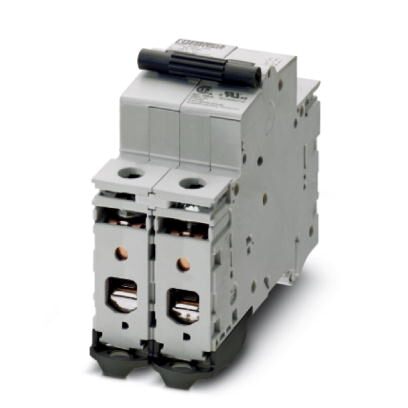

Circuit Breaker Thermal Magnetic 2Pole 63A 415VAC

Thermomagnetic circuit breaker, two-pole, 63 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either S or H remote signal. Protects wiring and equipment from overcurrent and short circuit faults.


贸泽:
Circuit Breakers TMC 62C 63A


艾睿:
Circuit Breaker Thermal Magnetic 2Pole 63A 415VAC


Allied Electronics:
TMC 62C 63A


MASTER:
Thermomagnetic circuit breaker - two-pole - 63 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either S or H remote signal. Protects wiring and equipment from overcurrent and short circuit faults.


Online Components:
Thermomagnetic circuit breaker, two-pole, 63 A thermal trip. DIN rail mounted and UL 1077-recognized with optional auxiliary contact for either ...


0902302中文资料参数规格
技术参数

额定电压AC 415 V

额定电流 63 A

工作温度Max 55 ℃

工作温度Min -25 ℃

额定电压 415 VAC

封装参数

安装方式 Screw, DIN Rail

外形尺寸

宽度 36 mm

高度 86 mm

物理参数

颜色 Gray

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536200020

数据手册

在线购买0902302
型号: 0902302
描述:Circuit Breaker Thermal Magnetic 2Pole 63A 415VAC
