0395200005

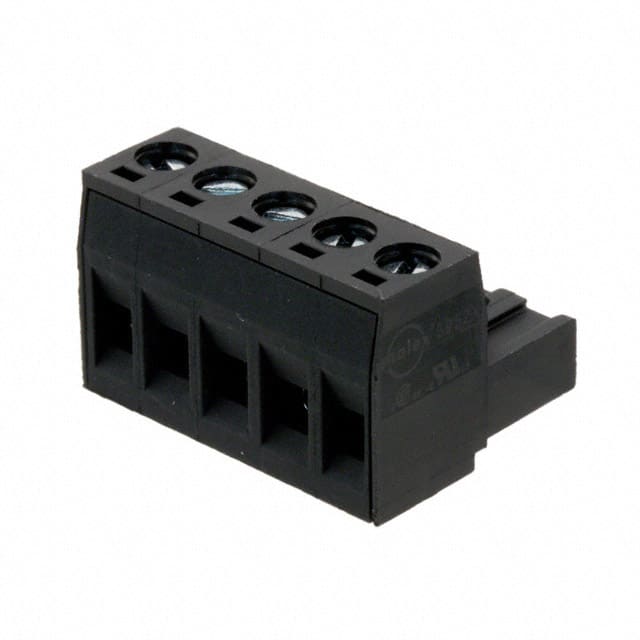

5.00毫米（ .197 “ ）间距欧瑞士达™横插， 5电路 5.00mm .197" Pitch Eurostyle™ Horizontal Plug, 5 Circuits

Ideal for testing purposes this eurostyle block PCB terminal block manufactured from will exceed your needs. This F connector"s 5 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a maximum voltage rating of 300 V. It has a female type gender. It has a right angle body orientation. Its pitch is 5 mm. 0395200005 is housed in polyamide 6/6. This device has a maximum current rating of 15 A/contact. Its wire is 12-30 AWG. It uses the screw termination method. This quick disconnect terminal has an operating temperature of -40 to 105 °C. This product is 25 mm long, 15 mm tall and 18.2 mm deep.
