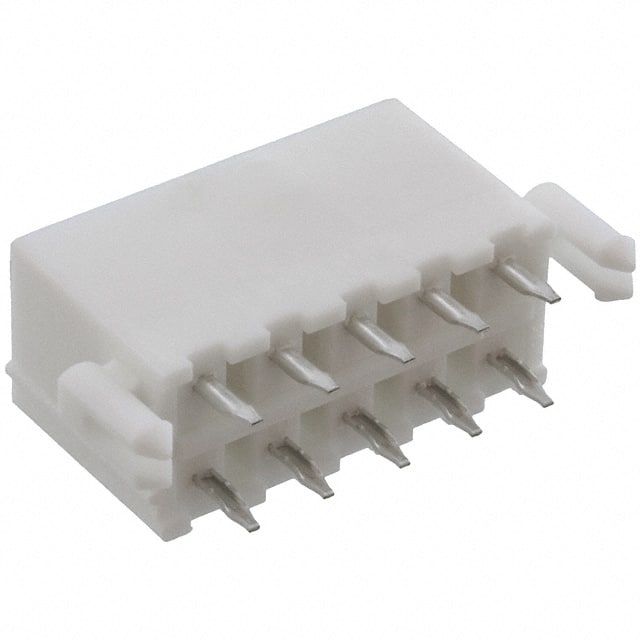

4.20毫米（ .165 “ ）间距迷你小飞度™插头，双排，垂直，以管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock
Connector Header Through Hole 10 position 0.165" 4.20mm
得捷:
CONN HEADER VERT 10POS 4.2MM
艾睿:
Use this 0039289108 power connector from Molex to power up your circuit without having to worry about energy seepage. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 600 V. It has a straight body orientation. It has a header type gender. This connector has a single port. Its pitch is 4.2 mm. 0039289108 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. The item will be shipped in tray orientation. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 12.8 mm tall. Its 10 terminals use the solder termination method.
安富利:
Conn Wire to Board HDR 10 POS 4.2mm Solder ST Thru-Hole Tray
Verical:
Conn Power HDR 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Mini-Fit Jr™ Tray
