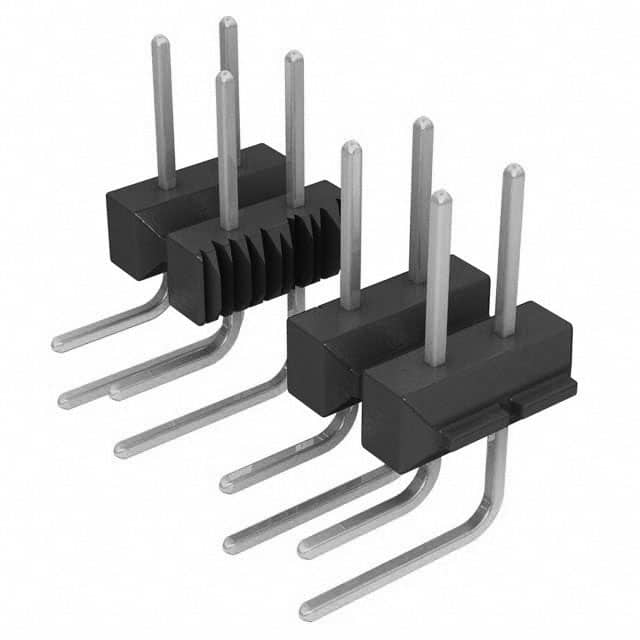

2.54毫米（ .100“ ）间距C- Grid®分离式接头，有很高的知名度，双排，直角， 30电路， 6.10毫米（ .240 ” ）配合针脚长度，锡（Sn ）镀层 2.54mm .100" Pitch C-Grid® Breakaway Header, High Profile, Dual Row, Right Angle, 30 Circuits, 6.10mm .240" Mating Pin Length, Tin Sn Plating
针座 通孔，直角 30 位置 0.100"（2.54mm）
得捷:
CONN HEADER R/A 30POS 2.54MM
艾睿:
This unshrouded 0010883301 header connector from Molex is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 30 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 250 VDC|250VAC. This is a 2-row connector. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -40 to 105 °C. 0010883301 is housed in black polyester. This product is 37.85 mm long, 5.59 mm tall and 13.54 mm deep. It uses the solder termination method.
安富利:
Conn Unshrouded Header HDR 30 POS 2.54mm Solder RA Thru-Hole Tube
