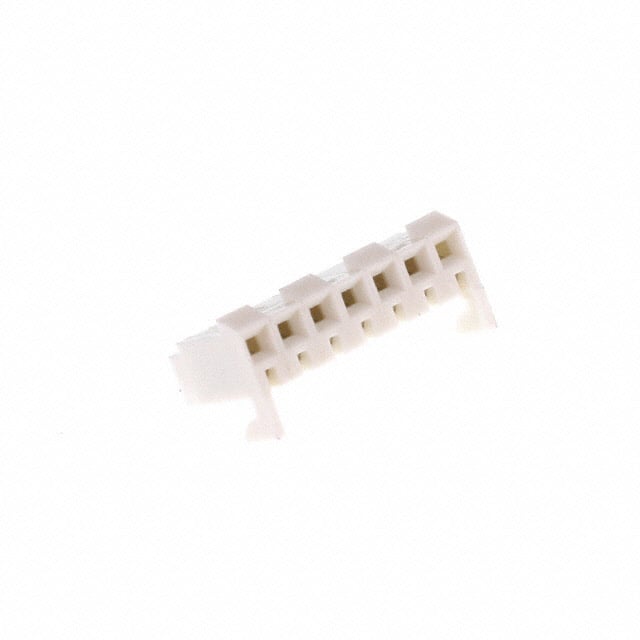

3.96毫米（ .156 “ ）间距KK® PC板连接器，顶面入口，聚酯连接器， 5.0μM （ 200μ ”），锡（Sn ） ， 7电路 3.96mm .156" Pitch KK® PC Board Connector, Top Entry, Polyester Connector,5.0μm 200μ" Tin Sn, 7 Circuits
7 Position Receptacle Connector Through Hole
得捷:
CONN RCPT 7POS 0.156 TIN PCB
艾睿:
Look no further than the socket strip 0009484078 header connector from Molex, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 7 contacts that are made out of phosphor bronze and plated with tin over copper. It has a receptacle type gender. It has a straight body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 3.96 mm. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. 0009484078 is housed in white polyester. This connector has an operating temperature of -40 to 105 °C. This product is 27.64 mm long, 11.4 mm tall and 11.92 mm deep. It uses the solder termination method.
Verical:
Conn RCP 7 POS 3.96mm Solder ST Thru-Hole 7 Terminal 1 Port Tray
