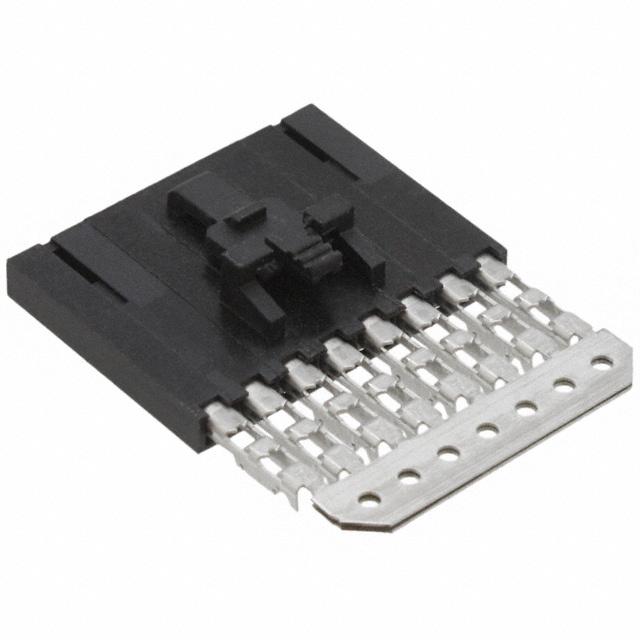

2.54毫米（ .100“ ）间距SL ™绝缘位移连接器组件，女，单列，版本G ，锁扣，线径规格24 ， 0.38μm （ 15μ ”），金（Au ） ， 8电路 2.54mm .100" Pitch SL™ Insulation Displacement Connector Assembly, Female,Single Row, Version G, Positive Lock, Wire Size 24, 0.38μm 15μ" Gold Au, 8 Circuits
8 Position Rectangular Receptacle Connector IDC Gold 24 AWG
得捷:
CONN RCPT 8POS IDC 24AWG GOLD
艾睿:
Mount this idc connector 0014562082 header connector from Molex on a jumper post on your PCB to support physical configuration options. This F connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VDC|250VAC. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 20.29 mm long, 6.58 mm tall and 15.24 mm deep. This connector has an operating temperature of -40 to 105 °C. It uses the idt termination method. 0014562082 is housed in black polyester.
Verical:
Conn IDC Connector F 8 POS 2.54mm IDT ST Cable Mount SL™ Tube
