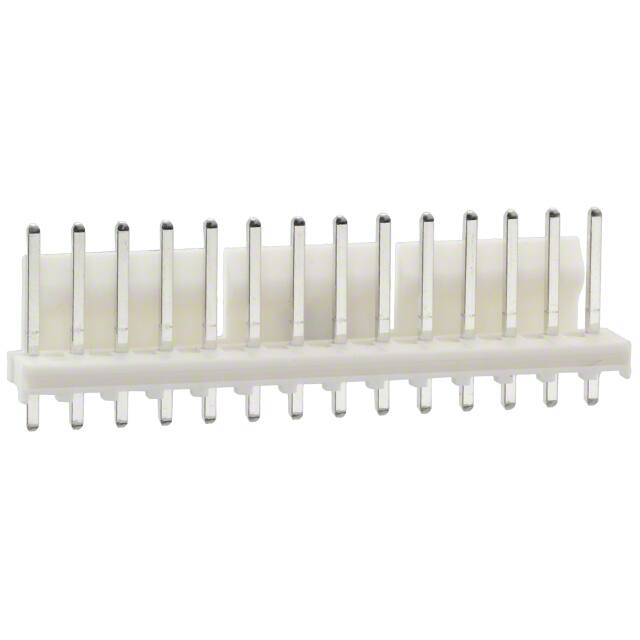

3.96毫米（ .156 “ ）间距KK®固体头，垂直，摩擦锁， 14电路，锡（Sn ）镀层 3.96mm .156" Pitch KK® Solid Header, Vertical, Friction Lock, 14 Circuits, Tin Sn Plating
Connector Header Through Hole 14 position 0.156" 3.96mm
得捷:
CONN HEADER VERT 14POS 3.96MM
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this wire to board 0026604140 header connector from Molex on your PCB today! This HDR connector&s;s 14 contacts that are made out of brass and plated with tin over copper. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 3.96 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 7 A/contact. 0026604140 is housed in natural polyester. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. This product is 55.32 mm long, 14.73 mm tall and 10.01 mm deep.
Verical:
Conn Wire to Board HDR 14 POS 3.96mm Solder ST Top Entry Thru-Hole Bag
