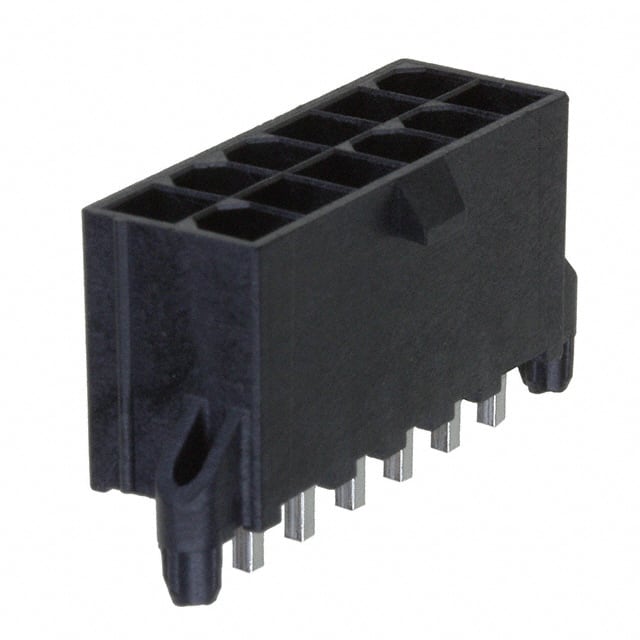

4.20毫米（ .165 “ ）间距小飞度RTC回流焊高温兼容头，双排，垂直 4.20mm .165" Pitch Mini-Fit RTC Reflow High Temperature Compatible Header, Dual Row, Vertical
针座 通孔 12 位置 0.165"（4.20mm）
得捷:
CONN HEADER VERT 12POS 4.2MM
艾睿:
This specially engineered 0462070012 power connector from Molex is designed for various high voltage and current supplies. This HDR connector&s;s 12 contacts that are made out of brass alloy and plated with tin over nickel. It has a straight body orientation. This connector has a single port. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VDC|600VAC. It has a header type gender. This device has a maximum current rating of 13 A/contact. 0462070012 is housed in thermoplastic. The item will be shipped in tray orientation. This product is 33.4 mm long, 13.6 mm tall and 9.6 mm deep. Its 12 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C.
Verical:
Conn Wire to Board HDR 12 POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr™ Tray
