0875681663

0875681663图片1

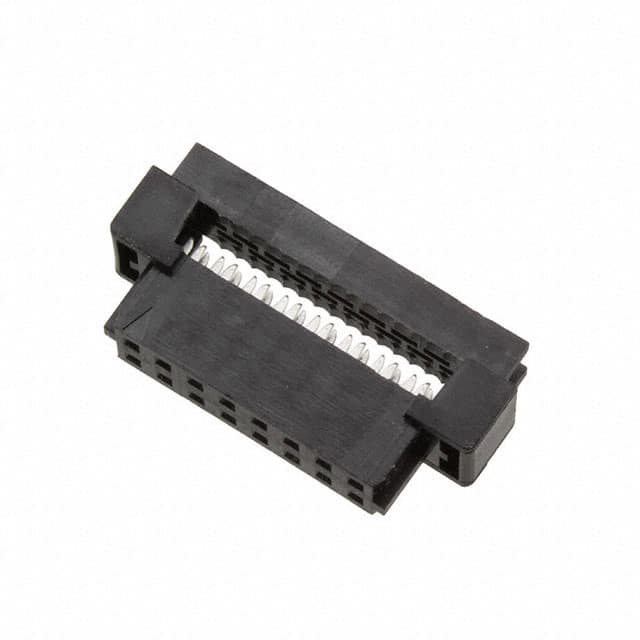

0875681663图片2
0875681663概述

2.00毫米( 0.079 )间距的Milli-电网™线对板插座,双排, IDT ,无铅, 16电路, 0.38毫米( 0.015 ),金(Au )选择性电镀 2.00mm .079 Pitch Milli-Grid™ Cable-to-Board Receptacle, Dual Row, IDT, Lead-free, 16 Circuits, 0.38mm .015 Gold Au Selective Plating

16 Position Rectangular Receptacle Connector IDC Gold 28 AWG


得捷:
CONN RCPT 16POS IDC 28AWG GOLD


艾睿:
Conn IDC Connector RCP 16 POS 1mm IDT RA Cable Mount Milli-Grid™ Frame


安富利:
Conn IDC Connector RCP 16 POS 2mm IDT RA Cable Mount Tray


Verical:
Conn IDC Connector RCP 16 POS 2mm IDT RA Cable Mount Milli-Grid™ Tray


0875681663中文资料参数规格
技术参数

触点数 16

极性 Female

绝缘电阻 5000 MΩ

排数 2

拔插次数 100

额定电流Max 1A/触头

工作温度Max 85 ℃

工作温度Min -20 ℃

额定电压Max 125 V

接触电阻Max 30 mΩ

外形尺寸

高度 11.4 mm

物理参数

外壳颜色 Black

触点材质 Copper Alloy

工作温度 -20℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0875681663
型号: 0875681663
制造商: Molex 莫仕
描述:2.00毫米( 0.079 )间距的Milli-电网™线对板插座,双排, IDT ,无铅, 16电路, 0.38毫米( 0.015 ),金(Au )选择性电镀 2.00mm .079 Pitch Milli-Grid™ Cable-to-Board Receptacle, Dual Row, IDT, Lead-free, 16 Circuits, 0.38mm .015 Gold Au Selective Plating
