1779424

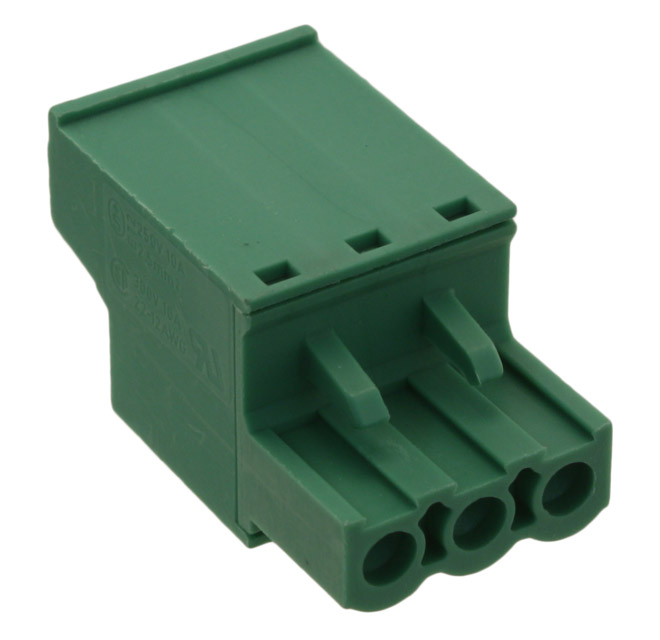

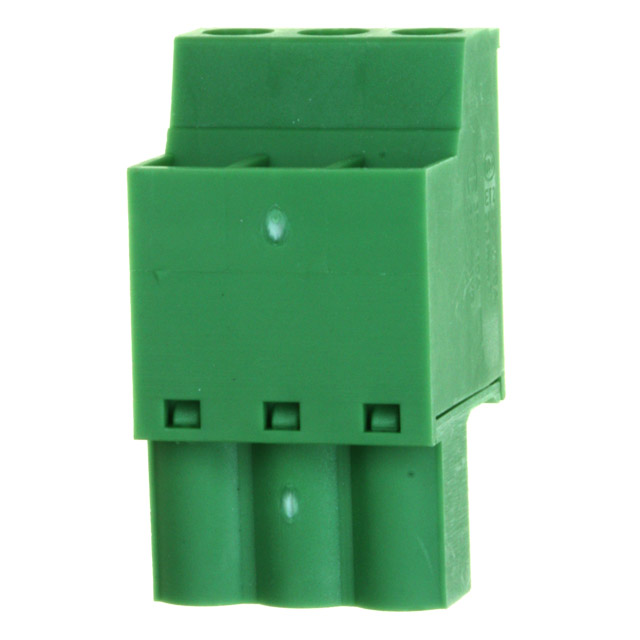

Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 3 路 母 绿色 插头 1779424, 螺钉端接

针位端子块

得捷:
TERM BLOCK PLUG 3POS STR 5MM

欧时:
Phoenix Contact COMBICON FRONT-MSTB 系列 5mm 节距 3 路 母 绿色 插头 1779424, 螺钉端接

贸泽:
Pluggable Terminal Blocks 3 Pos 5mm pitch Plug 24-12 AWG Screw

艾睿:
Get the best connections between your circuits with this 1779424 PCB terminal block from Phoenix Contact. This F connector has 3 contacts that are plated with tin. It has a straight body orientation. It has a female type gender. It has a maximum voltage rating of 320 V. This is a 1-row connector. Its pitch is 5 mm. 1779424 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 15 mm long, 15 mm tall and 27.2 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

Verical:
Conn Terminal Blocks F 3 POS 5mm Screw ST Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5 mm - connection method: Front screw connection - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 3 POS 5mm Screw ST Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
