1763032

Conn Shrouded Header HDR 4POS 5mm Solder ST Thru-Hole

4 针位端子块 接头，公引脚，带罩（2 面） 0.197"（5.00mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 4POS VERT 5MM

艾睿:

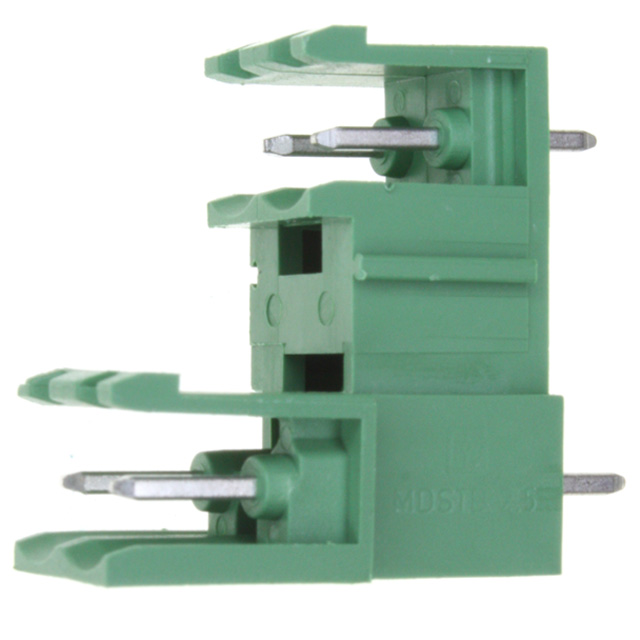

Look no further than the shrouded 1763032 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 4 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a header type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 5 mm. This device has a maximum current rating of 10 A. This product is 12.5 mm long, 22.1 mm tall and 23.7 mm deep. 1763032 is housed in green polybutylene terephthalate. It uses the solder termination method.

MASTER:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5

Online Components:
Conn Shrouded Header HDR 4 POS 5mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
