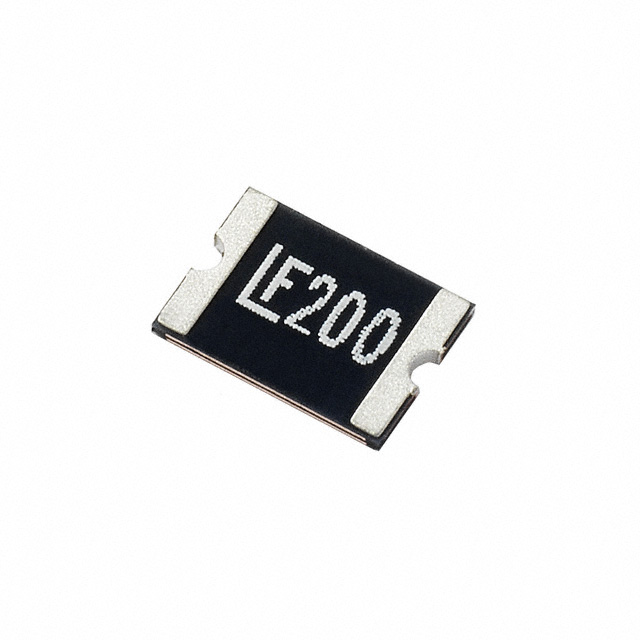

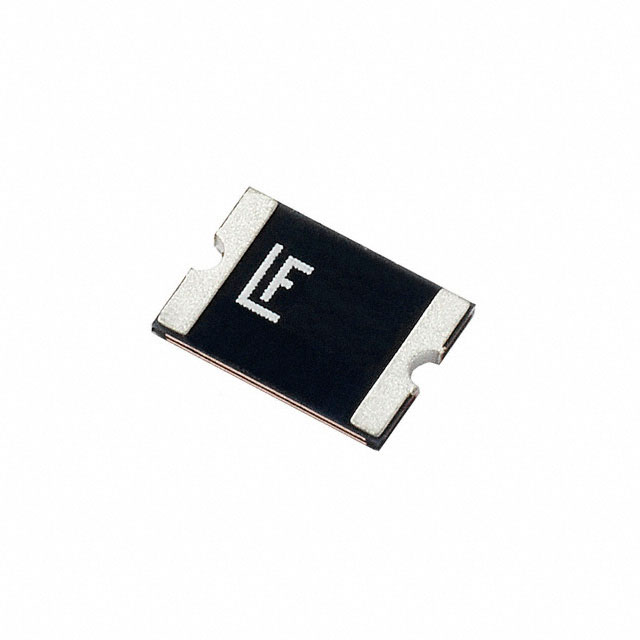

LITTELFUSE 1812L200THPR 自复式保险丝, PTC, 1812, 2A
The is a 2A surface mount PTC Resettable Fuse with solder-plated Copper terminals. This low-profile resettable fuse compatible with high temperature solders and provides over-current protection for applications where resettable protection is desired. This 1812L series fuse supports level 1, J-STD-020C moisture sensitivity and features fast response to fault currents.
- .
- Low resistance
- .
- Fast response to fault currents
- .
- Compact design saves board space
- .
- Plug and play protection for motherboards and peripherals
- .
- -40 to 85°C Operating/storage temperature range
Operation beyond the specified rating may result in damage and possible arcing and flame.
额定电压DC 8.00 V
工作电压 8 V
跳闸时间 2 s
耗散功率 0.8 W
电阻 0.07 Ω
保持电流 2 A
跳闸电流 3.5 A
额定电流Max 100 A
保持电流Max 2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 8 VDC
额定电压 8 VDC
工作电压Max 8 V
安装方式 Surface Mount
封装公制 4832
封装 1812
长度 4.73 mm
宽度 3.41 mm
高度 0.6 mm
封装公制 4832
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, Consumer Electronics, Computers & Computer Peripherals, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1812L200THPR Littelfuse 力特 | 当前型号 | 当前型号 |
1812L200DR 力特 | 完全替代 | 1812L200THPR和1812L200DR的区别 |
MF-MSMF200-2 伯恩斯 | 功能相似 | 1812L200THPR和MF-MSMF200-2的区别 |
PFMF.200.2 Schurter | 功能相似 | 1812L200THPR和PFMF.200.2的区别 |
