1624112-4

固定电感器 3650 0603 27nH 5% 2K RL

3650 0603 27nH 5% 2K RL

贸泽:
固定电感器 3650 0603 27nH 5% 2K RL

艾睿:

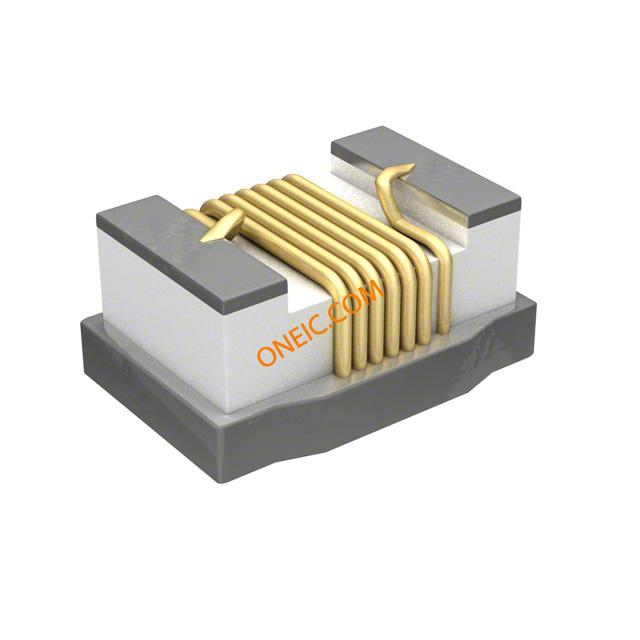

Make any circuit look clean and compact using this high frequency chip 1624112-4 surface mount inductor from TE Connectivity. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 27n H. This product is 1.8 mm long, 1.02 mm tall and 1.12 mm deep. It has a tolerance of 5%. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 2.8G Hz. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 220m Ohm. This device utilizes wirewound technology.

Verical:
Inductor High Frequency Chip Unshielded Wirewound 0.027uH 5% 250MHz 40Q-Factor 0.6A 0.22Ohm DCR 0603 T/R

MASTER:
LOW INDUCTANCE, HIGH FREQUENCY CHIP INDUCTOR SERIES 3650

Powell:
Passive Electronic Components

Online Components:
3650 0603 27nH 5% 2K RL

Electro Sonic:
3650 0603 27nH 5% 2K RL
