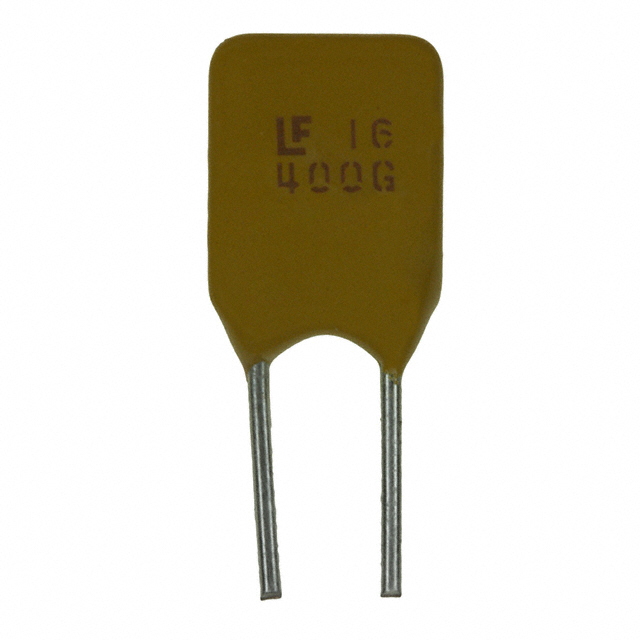

LITTELFUSE 16R400GU 可复位保险丝, PTC, 16V, 径向引线, 4A
Do you need a more convenient and quicker way for your protected equipment to be restored into operation after a fuse burns out? Then this PTC resettable fuse from is perfect for you! This device has a maximum current rating of 100. This part has a lead diameter of 0.81 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product is 8.9Max mm long, 12.8Max mm tall and 3Max mm deep. This product"s terminal pitch is 5.1typ mm.
额定电压DC 16.0 V
工作电压 16 V
跳闸时间 1.7 s
耗散功率 2.4 W
电阻 0.06 Ω
保持电流 4 A
跳闸电流 6.8 A
额定电流Max 100 A
保持电流Max 4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 16 VDC
额定电压 16 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 12.8 mm
宽度 8.9 mm
高度 12.8 mm
封装 Radial, Disc
厚度 3 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
16R400GU Littelfuse 力特 | 当前型号 | 当前型号 |
RGEF400K 力特 | 完全替代 | 16R400GU和RGEF400K的区别 |
RGEF400K-AP 力特 | 完全替代 | 16R400GU和RGEF400K-AP的区别 |
16R400GPR 力特 | 类似代替 | 16R400GU和16R400GPR的区别 |
